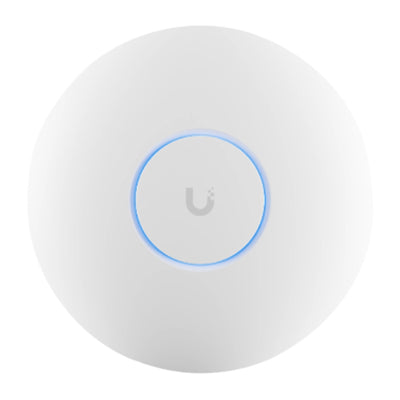

• Ubiquiti U7-PRO WiFi 7 Ceiling Mounted Wireless Access Point Front View

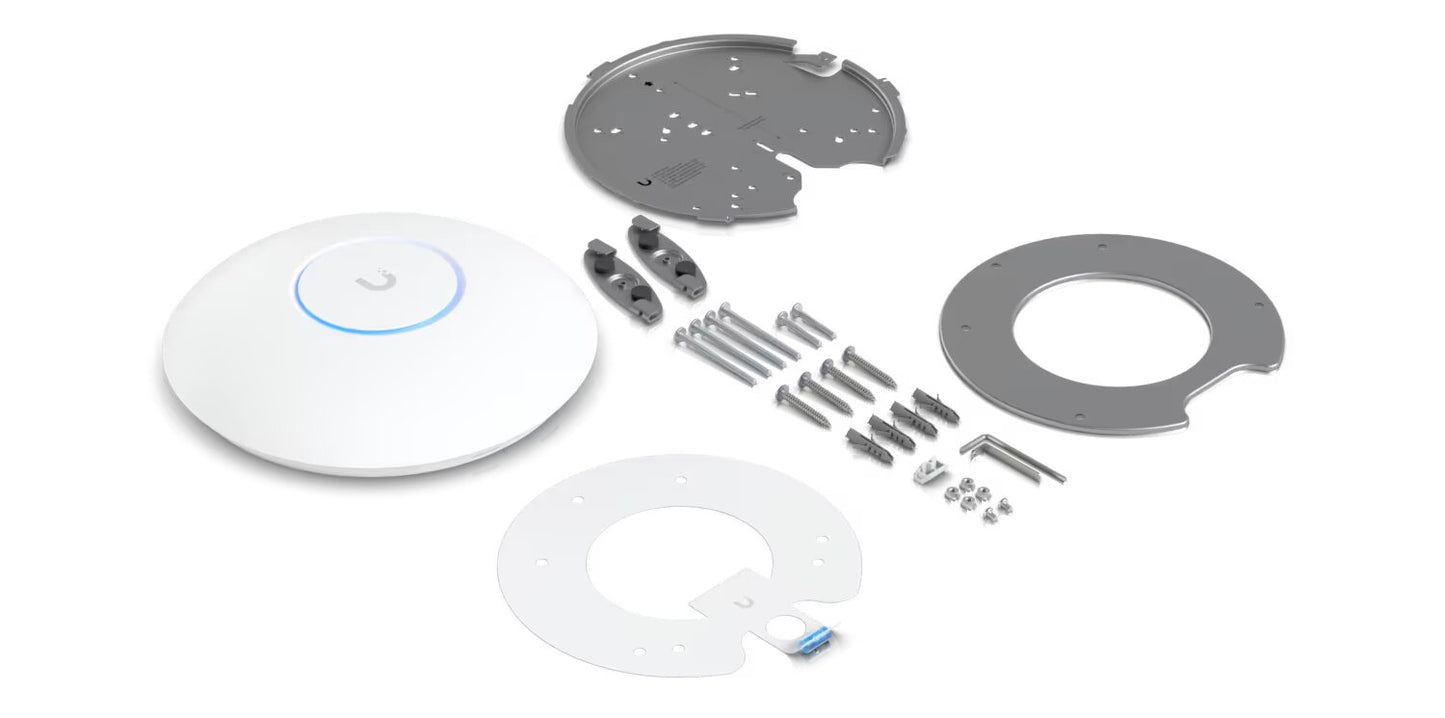

  • Ubiquiti U7-PRO WiFi 7 Ceiling Mounted Wireless Access Point Box Contents Displayed

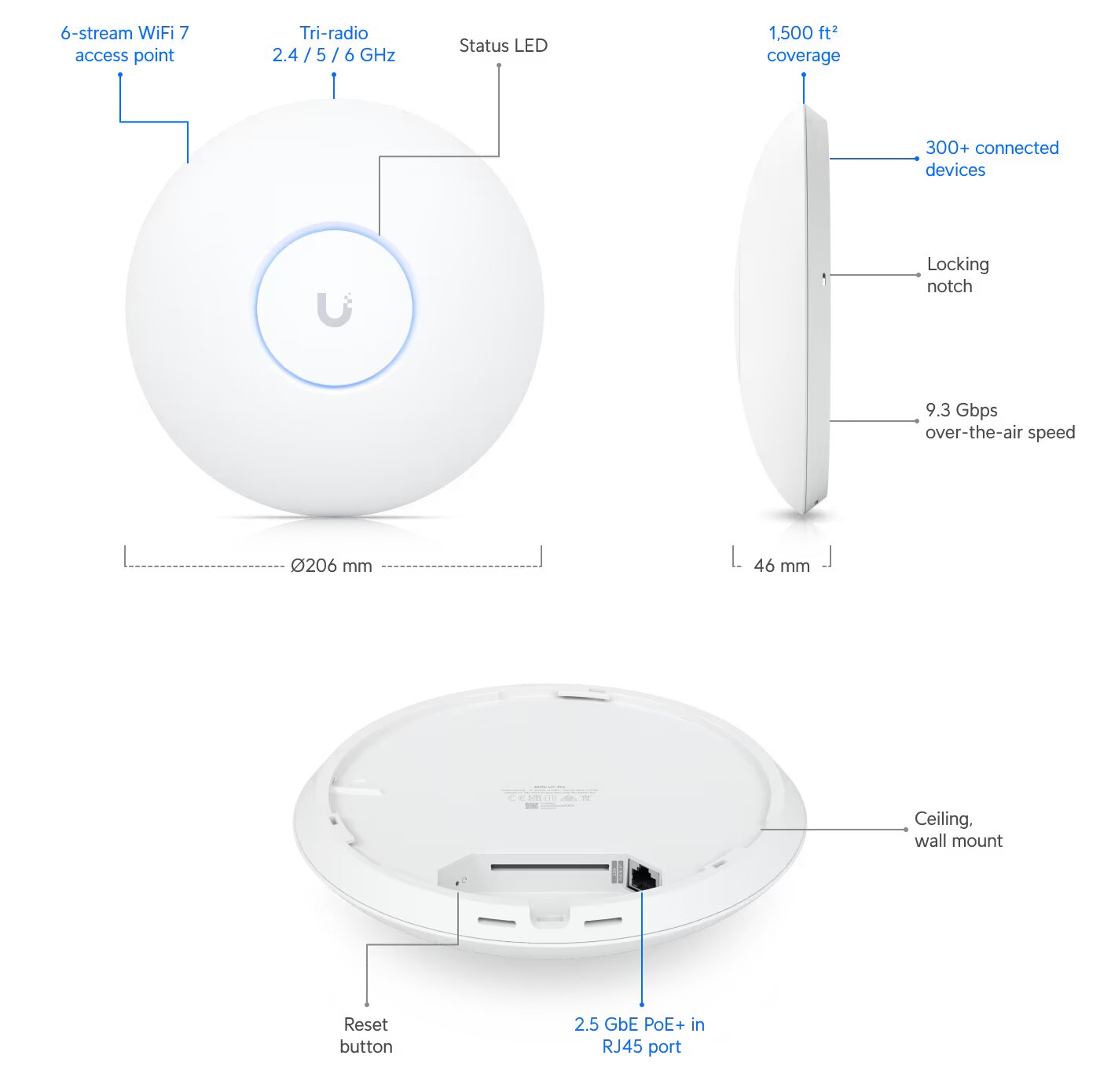

  • Ubiquiti U7-PRO WiFi 7 Ceiling Mounted Wireless Access Point Dimensions

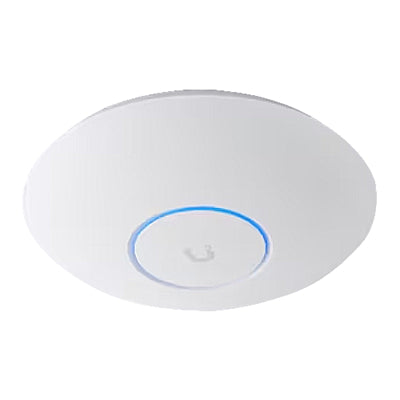

  • Ubiquiti U7-PRO WiFi 7 Wireless Access Point Ceiling Mount View
1 4

Ubiquiti U7-Pro UniFi Tri-Band WiFi 7 Access Point 9.3Gbps 802.11BE

Ubiquiti U7-Pro UniFi Tri-Band WiFi 7 Access Point 9.3Gbps 802.11BE

£189.99
£189.99
Sale Sold out
Tax included. Shipping calculated at checkout.

Ubiquiti U7-Pro UniFi Tri-Band WiFi 7 Ceiling Mounted Wireless Access Point 9.3Gbps 802.11BE

Please note: This wireless access point is not supplied with a PoE injector.
This product is not yet officially WiFi 7 certified and may not support all the mandatory features as ratified in the IEEE 802.11be specification.
Ceiling-mounted WiFi 7 AP with 6 spatial streams and 6 GHz support for interference-free WiFi in demanding, large-scale environments.

WiFi 7 with 6 GHz support

  • 6 spatial streams
  • 140 m² (1,500 ft²) coverage
  • 300+ connected devices
  • Powered using PoE+
  • 2.5 GbE uplink
MIMO
2.4 GHz
5 GHz
6 GHz
2 x 2
2 x 2
2 x 2
Throughput rate
2.4 GHz
5 GHz
6 GHz
688 Mbps
2882 Mbps
5765 Mbps


Multi-Link Operation (MLO) capability is coming soon and will be provided via software update.

View full details

Explore Further

Highlights

WiFi 7 tri-radio
6 spatial streams
Essential WiFi speed
(1) 2.5GbE port
PoE+ powered

Dimensions and Weight

Width 206 mm, Depth 206 mm, Height 46 mm,Weight 1.3 kg

Specification

Mechanical
Dimensions Ø206 x 46 mm (Ø8.1 x 1.8")
Weight 680 g (1.5 lb)
Enclosure material Polycarbonate, metal
Mount material Stainless steel (SUS304), galvanized steel (SGCC)
Hardware
Networking interface (1) 1/2.5 GbE RJ45 port
Management interface Ethernet
Power method PoE+
Power supply UniFi PoE switch
Supported voltage range 44—57V DC
Max. power consumption 21W
Max. TX power
2.4 GHz
5 GHz
6 GHz
22 dBm
26 dBm
23 dBm
MIMO
2.4 GHz
5 GHz
6 GHz
2 x 2
2 x 2
2 x 2
Throughput rate
2.4 GHz
5 GHz
6 GHz
688 Mbps
2882 Mbps
5765 Mbps
Antenna gain
2.4 GHz
5 GHz
6 GHz
4 dBi
6 dBi
5.8 dBi
LEDs White/blue
Button Factory reset
Mounting Wall/ceiling (Included)
Ambient operating temperature -30 to 60° C (-22 to 140° F)
Ambient operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
Software
WiFi standards 802.11a/b/g/n/ac/ax/be
Wireless security WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
BSSID 8 per radio
VLAN 802.1Q
Advanced QoS Per-user rate limiting
Guest traffic isolation Supported
Concurrent clients 300+
Supported Data Rates
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac (WiFi 5) 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11ax (WiFi 6/6E) 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11be (WiFi 7) 7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)
Application Requirements
UniFi Network Version 8.0.26 and later
UniFi OS Version 3.2 and later
