Ubiquiti U7-Pro-Wall Tri-Band WiFi 7 Access Point 10.7Gbps BE

Ubiquiti U7-Pro-Wall Tri-Band WiFi 7 Access Point 10.7Gbps BE

£239.99
£239.99
Sale Sold out
Tax included. Shipping calculated at checkout.

Ubiquiti U7-Pro-Wall Tri-Band WiFi 7 Access Point 10.7Gbps Wireless AP



Please note: This access point is not supplied with a PoE injector, it is not yet officially WiFi 7 certified and may not support all the mandatory features as ratified in the IEEE 802.11be specification.



The Ubiquiti U7-Pro-Wall Tri-Band WiFi 7 Access Point is a wall-mounted WiFi 7 AP with 6 spatial streams and 6 GHz support. It is tailored for home builders with seamless installation options.

Key Features

  • WiFi 7 with 6 GHz support.
  • Six (6) spatial streams.
  • 140 m2 (1,500 ft2) coverage.
  • Supports 300+ connected devices.
  • Powered using PoE+.
  • 2.5 GbE uplink port.
  • Versatile deployment with optional mounting accessories (sold separately).
View full details

Explore Further

Highlights

Key Features
Includes one (1) PoE injector.
WiFi 7 with 6 GHz support.
Six (6) spatial streams.
140 m2 (1,500 ft2) coverage.
Supports 300+ connected devices.
Powered using PoE+.
2.5 GbE uplink port.
Versatile deployment with optional mounting accessories (sold separately).

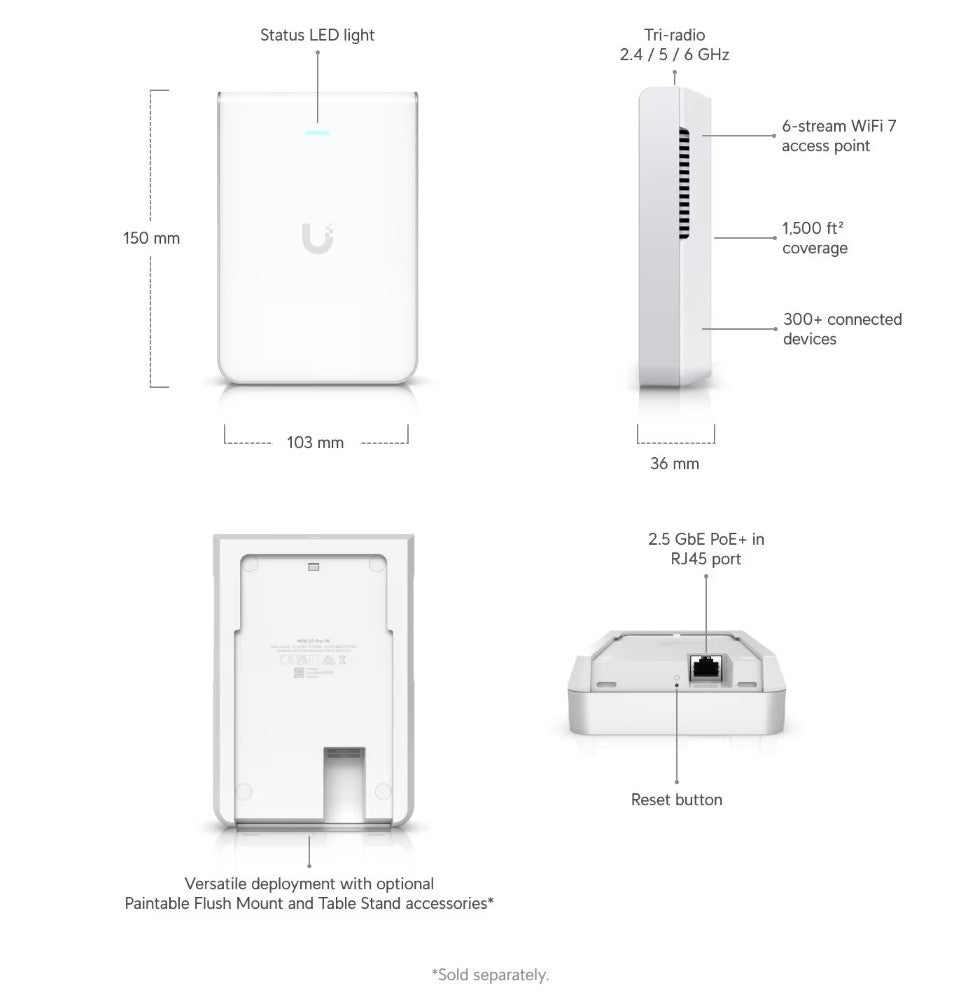

Dimensions and Weight

Width 103 mm, Depth 36 mm, Height 150 mm,Weight 580 g

Specification

Mechanical
Dimensions 150 x 103 x 36 mm (5.9 x 4.1 x 1.4")
Weight 580 g (1.3 lb)
Enclosure material Polycarbonate, aluminum
Mount material Aluminum
Hardware

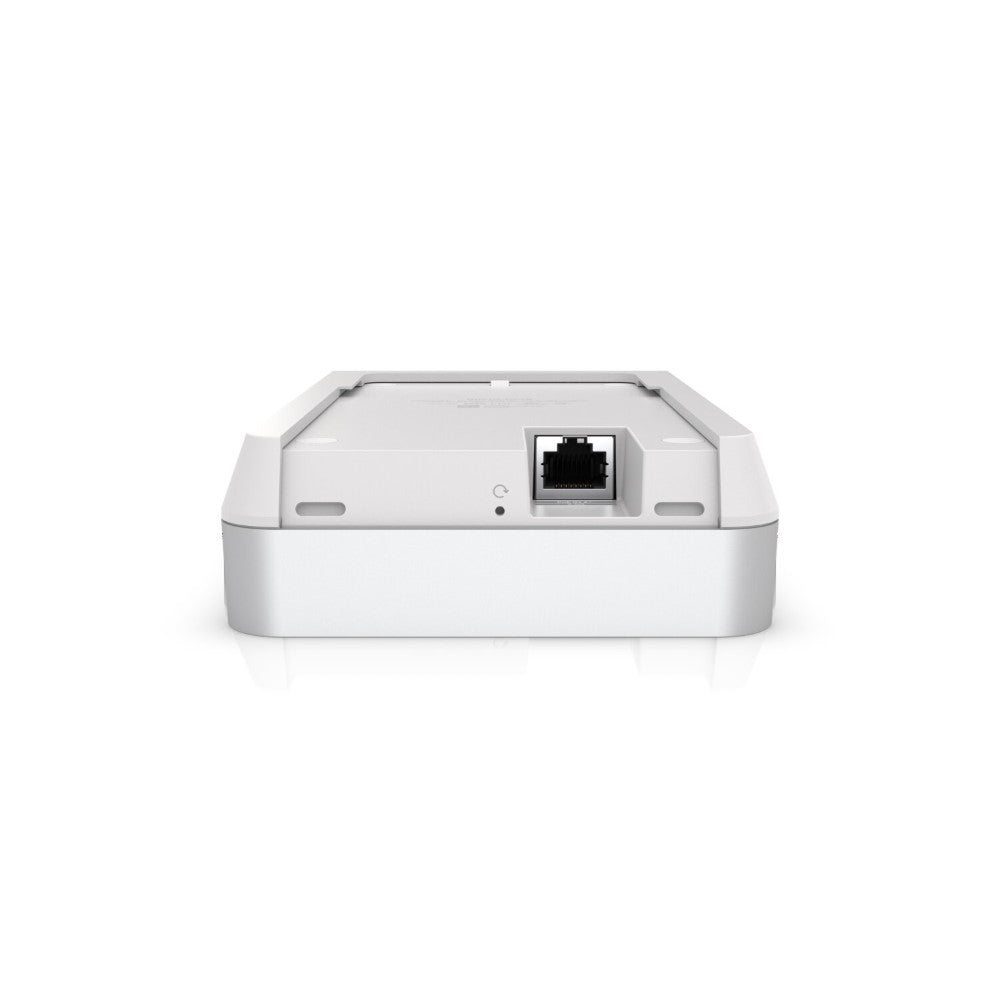

Networking interface (1) 1/2.5 GbE RJ45 port
Management interface Ethernet
Power method PoE+
Power supply UniFi PoE switch
Supported voltage range 44—57V DC
Max. power consumption 22W
Max. TX power
2.4 GHz
5 GHz
6 GHz
22 dBm
26 dBm
23 dBm
MIMO
2.4 GHz
5 GHz
6 GHz
2 x 2
2 x 2
2 x 2
Throughput rate
2.4 GHz
5 GHz
6 GHz
688 Mbps
4324 Mbps
5764 Mbps
Antenna gain
2.4 GHz
5 GHz
6 GHz
4 dBi
5 dBi
6 dBi
LEDs White/blue
Button Factory reset

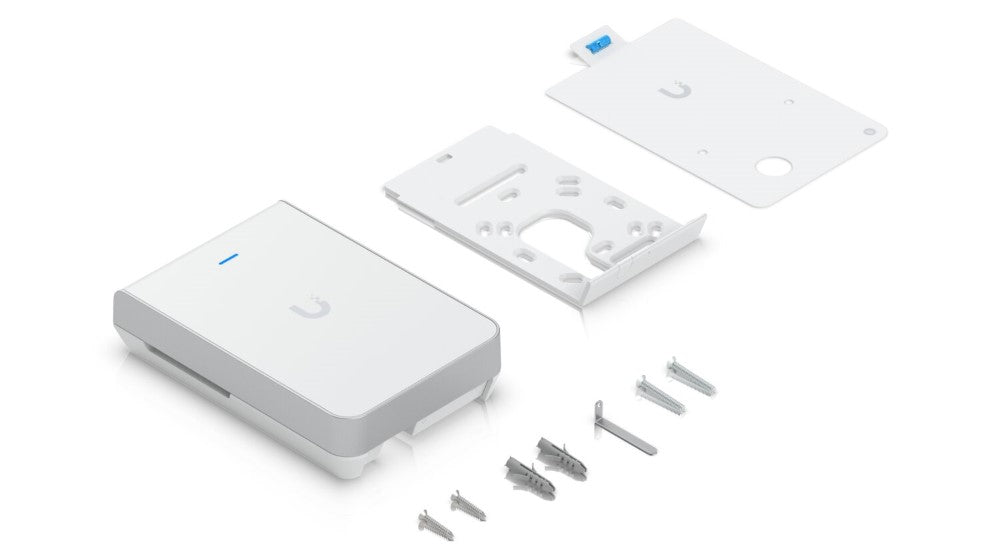

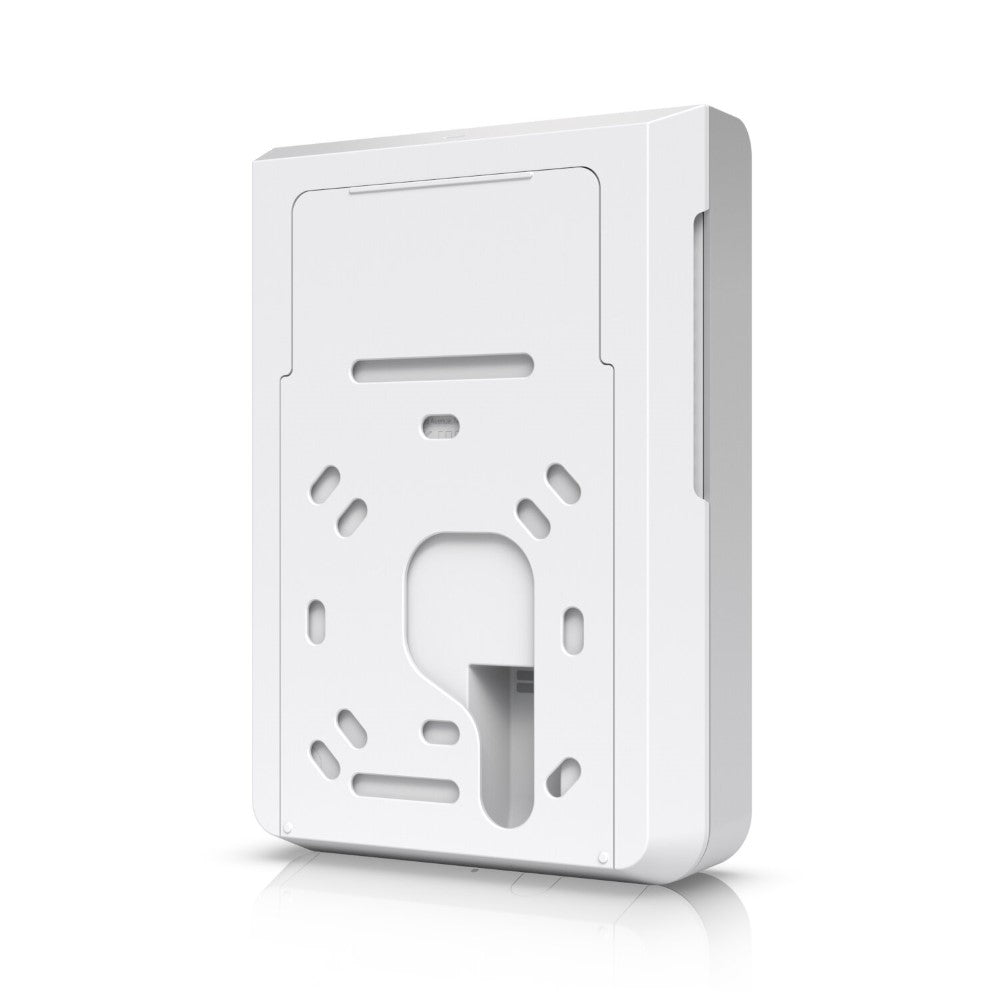

Mounting Wall (Included)
Table stand, flush mount (Optional)
Ambient operating temperature -30 to 60° C (-22 to 140° F)
Ambient operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
Software
WiFi standards 802.11a/b/g/n/ac/ax/be
Wireless security WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
BSSID 8 per radio
VLAN 802.1Q
Advanced QoS Per-user rate limiting
Guest traffic isolation Supported
Concurrent clients 300+
Supported Data Rates
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac (WiFi 5) 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11ax (WiFi 6/6E) 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11be (WiFi 7) 7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)
Application Requirements
UniFi Network Version 8.1 and later
UniFi OS Version 3.2 and later
