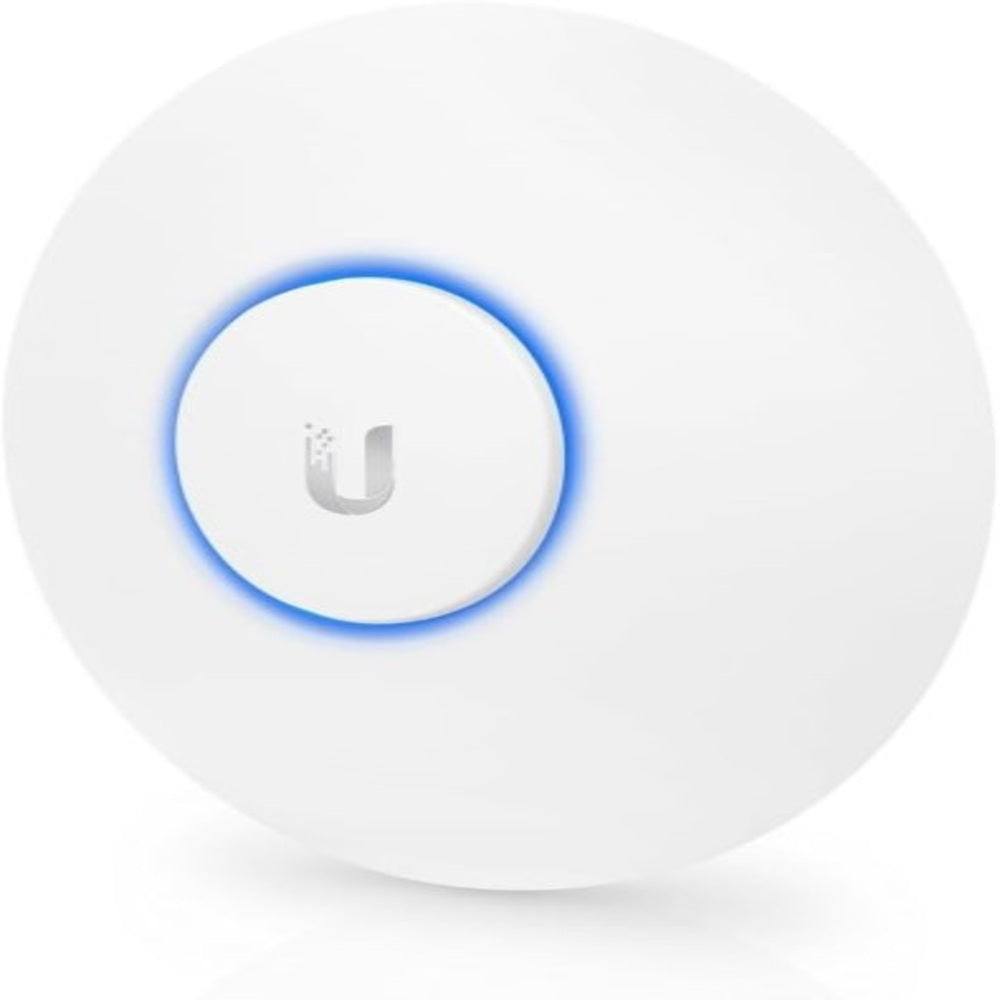

Ubiquiti UAP-AC-LR Long Range UniFi WiFi 5 PoE Access Point (1.3Gbps AC)

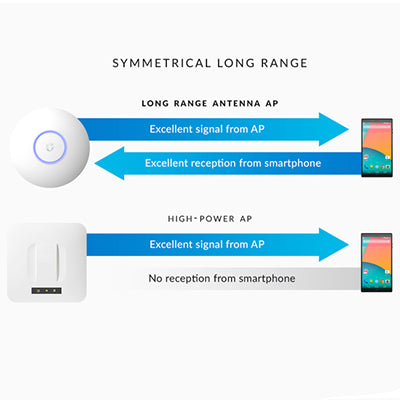

The Ubiquiti UAP-AC-LR UniFi AC1300 is an ideal choice for extensive range setups, featuring a dual-band WiFi PoE access point with concurrent dual-band functionality. It supports 3x3 MIMO technology in the 2.4 GHz frequency and 2x2 MIMO in the 5 GHz frequency. Its advanced antenna design ensures extensive, symmetrical-link coverage, outperforming traditional one-way, high transmit power in connecting remote clients. It's an excellent fit for a variety of venues including pubs, clubs, hotels, businesses, and even residential settings.
Key Features

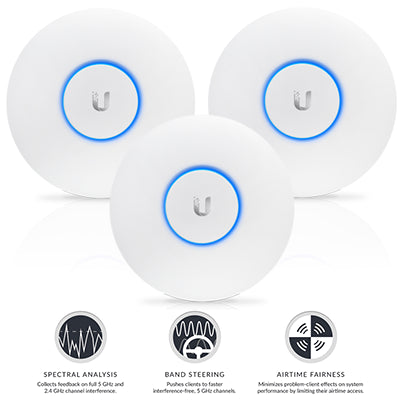

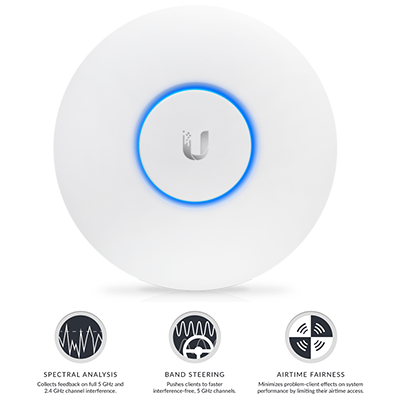

- Designed for Optimal RF Performance - The newly redesigned UniFi Controller optimises RF performance:
- Spectral Analysis - Collects feedback on full 5GHz and 2.4GHz WiFi channel interference
- Band Steering: Pushes connected WiFi clients to faster interference-free 5GHz channels.
- Airtime Fairness: Minimises problem-client effects on system performance by limiting their airtime access
- Powerful Hardware- Features the latest in WiFi 802.11AC MIMO technology with WiFi speeds up to 1300Mbps (450Mbps + 867Mbps)
- Includes UK Power Cable - No need to purchase additional cable for use in the United Kingdom, 1.8m IEC C5 cable included
- Google Maps Integration - Upload your own custom coverage maps or configure your map using the built-in Google Maps API.
- L3 Manageability - With L3 manageability, the UniFi Controller software can be run on a different subnet than the UniFi APs it manages, allowing 'no-touch' AP provisioning
- Multi-Site Management - A single UniFi Controller can manage multiple, distributed deployments and multi-tenancy for managed service providers. You can configure settings and administrator accounts specific to each deployment.
- One UniFied Network - Option to create one large wireless network across multiple APs that lets users move around the network wirelessly.
- Events and Alerts - UniFi makes it easy to view and set up email delivery of alerts and recent event notifications on your network(s).
- Access Points (APs) - Easily install, configure, and manage all access points from one location.
- Guest Portal/Hotspot Support - Easy customisation and advanced options for Guest Portals include authentication, Hotspot setup options, and the ability to run as an external portal server. Take advantage of UniFi's rate limiting for your Guest Portal and Hotspot package offerings. Apply different bandwidth rates (download/upload), limit total data usage, and limit duration of use.
-
All UniFi AC APs include Hotspot functionality:
- Built-in support for billing integration using major credit cards via PayPal.
- Built-in support for voucher-based authentication.
- Built-in Hotspot Manager for voucher creation, guest management, and payment refund.
- Full customisation of Hotspot portal pages.
Scalable enterprise WiFi management
UniFi is the revolutionary WiFi system that combines enterprise performance, unlimited scalability, and a central management controller. The Ubiquiti UAP-AC-LR UniFi access points has a refined industrial design and can be easily installed using the included mounting hardware. Easily accessible through any standard web browser, the UniFi Controller software is a powerful software engine ideal for high-density client deployments requiring low latency and high uptime performance. Use the UniFi Controller software to quickly configure and administer an enterprise WiFi network – no special training required. RF map and performance features, real-time status, automatic UAP device detection, and advanced security options are all seamlessly integrated.
The UniFi Controller is packed with features
You can use the UniFi Controller to provision thousands of UniFi APs, map out networks, quickly manage system traffic, and provision additional UniFi APs while using the RF map to monitor and analyse radio frequencies for optimal AP placement, configuration, and troubleshooting. Advanced RF performance and configuration features include spectral analysis, airtime fairness, and band steering.
Wireless Uplink functionality enables wireless connectivity between APs for extended range. One wired UniFi AP uplink supports up to four wireless downlinks on a single operating band, allowing wireless adoption of devices in their default state and real-time changes to network topology. The UniFi Controller also offers configurable reporting and analytics to manage large user populations and expedite troubleshooting.
Guest Portal/Hotspot support
Easy customisation and options for Guest Portals include authentication, Hotspot setup, and the ability to use your own external portal server. Use UniFi's rate limiting for your Guest Portal/Hotspot package offerings. Apply different bandwidth rates (download/upload), limit total data usage, and limit duration of use.
All UniFi APs include Hotspot functionality:
- Built-in support for billing integration using major credit cards.
- Built-in support for voucher-based authentication.
- Built-in Hotspot Manager for voucher creation, guest management, and payment refund.
- Full customisation and branding of Hotspot portal pages.
Multi-Site management
A single UniFi Controller running in the cloud can manage multiple sites: multiple, distributed deployments and multi-tenancy for managed service providers. Each site is logically separated and has its own configuration, maps, statistics, guest portal, and administrator read/write and read-only accounts. Contact us if you require a hosted Cloud Controller service that takes the hassle out of managing single or multi-tenancy sites and ensures your data remains secure and readily available to you when you need it.
Power over Ethernet (PoE)

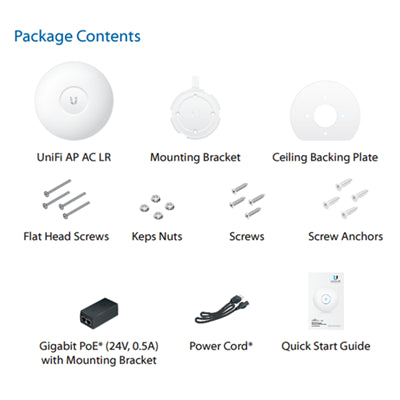

Deploying a Ubiquiti UAP-AC-LR UniFi AP in a remote or difficult locations is made easier with integrated Power over Ethernet (PoE) functionality that allows both power and data to be carried over a single Ethernet cable to the access point. This Access Point includes a UK power supply and PoE injector.
Share
Explore Further
Highlights
WiFi Standard 802.11n/ac/WiFi 5
Radios/Antenna 3x3
2.4GHz - 450Mbps
5GHz - 867Mbps
Gigabit Ethernet Ports - 1
PoE 24V Passive/802.3af PoE
PoE Adapter Included Yes 1 x 24V DC 0.5A GbE
Concurrent Clients 250+
Cloud Management Yes
Captive Portal Yes
Wave 2 MU-MIMO - No
Coverage 185 m² (2,000 ft²)
Band Steering Yes
Dimensions and Weight
Width 175.7 mm, Depth 43.2 mm, Height 175.7 mm,Weight 1.1 kg
Specification
Hardware
Dimensions
175.7 x 175.7 x 43.2 mm (6.92 x 6.92 x 1.70")
Weight With Mounting Kits
240 g (8.5 oz)
315 g (11.1 oz)

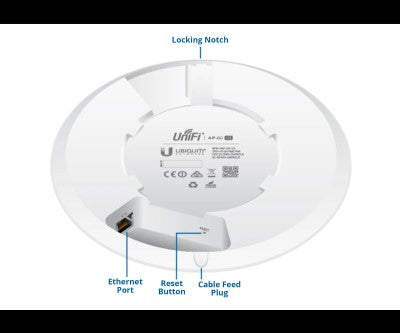

Networking Interface
(1) 10/100/1000 Ethernet Port
Buttons
Reset
Antennas
(1) Dual-Band Antenna, Tri-Polarity, 3 dBi
Wi-Fi Standards
802.11 a/b/g/n/ac
Power Method
802.3af/A PoE
Passive Power over Ethernet (24V), (Pairs 4, 5+; 7, 8 Return)
Power Supply
24V, 0.5A Gigabit PoE Adapter*
Maximum Power Consumption
6.5W
Maximum TX Power
2.4 GHz
24 dBm
5 GHz
22 dBm
BSSID
Up to Four per Radio
Power Save
Supported
Wireless Security
WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
Certifications
CE, FCC, IC

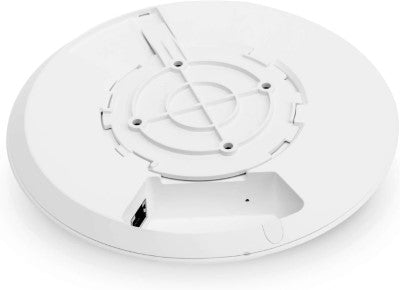

Mounting
Wall/Ceiling (Kits Included)
Operating Temperature
-10 to 70° C (14 to 158° F)
Operating Humidity
5 to 95% Noncondensing
Advanced Traffic Management
VLAN
802.1Q
Advanced QoS
Per-User Rate Limiting
Guest Traffic Isolation
Supported
WMM
Voice, Video, Best Effort, and Background
Concurrent Clients
200+
Supported Data Rates (Mbps)
Standard
Data Rates
802.11a
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n
6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40)
802.11ac
6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
802.11b
1, 2, 5.5, 11 Mbps
802.11g
6, 9, 12, 18, 24, 36, 48, 54 Mbps
* Only the single-pack and triple pack of the UAP-AC-LR includes a PoE adapter.
