Ubiquiti UAP AC Pro Indoor or Outdoor AC1750 Access Point

Ubiquiti UAP AC Pro Indoor or Outdoor AC1750 Access Point

Regular price £138.73
Regular price Sale price £138.73
Sale Sold out
Tax included. Shipping calculated at checkout.
Style

Ubiquiti UAP-AC-PRO UniFi WiFi 5 PoE Access Point (1.7Gbps AC) With PoE Injector

The Ubiquiti UAP-AC-PRO UniFi AC1750 WiFi PoE access point is versatile for both indoor and outdoor* setups. It provides concurrent dual-band functionality with 3x3 MIMO technology in both 2.4 GHz and 5 GHz bands. This access point is ideal for high-performance wireless networks, whether deployed inside or outside, thanks to its robust, weather-resistant design. Available in single and five-pack options, it offers flexible configuration with the option of a hassle-free hosted cloud controller or without.

Scalable enterprise WiFi management

UniFi is the revolutionary WiFi system that combines enterprise performance, unlimited scalability, and a central management controller. The Ubiquiti UAP-AC-PRO UniFi access points has a refined industrial design and can be easily installed using the included mounting hardware. Easily accessible through any standard web browser, the UniFi Controller software is a powerful software engine ideal for high-density client deployments requiring low latency and high uptime performance. Use the UniFi Controller software to quickly configure and administer an enterprise WiFi network – no special training required. RF map and performance features, real-time status, automatic UAP device detection, and advanced security options are all seamlessly integrated.

The UniFi Controller is packed with features

You can use the UniFi Controller to provision thousands of UniFi APs, map out networks, quickly manage system traffic, and provision additional UniFi APs while using the RF map to monitor and analyse radio frequencies for optimal AP placement, configuration, and troubleshooting. Advanced RF performance and configuration features include spectral analysis, airtime fairness, and band steering.

Wireless Uplink functionality enables wireless connectivity between APs for extended range. One wired UniFi AP uplink supports up to four wireless downlinks on a single operating band, allowing wireless adoption of devices in their default state and real-time changes to network topology. The UniFi Controller also offers configurable reporting and analytics to manage large user populations and expedite troubleshooting.

Guest Portal/Hotspot support

Easy customisation and options for Guest Portals include authentication, Hotspot setup, and the ability to use your own external portal server. Use UniFi's rate limiting for your Guest Portal/Hotspot package offerings. Apply different bandwidth rates (download/upload), limit total data usage, and limit duration of use.

All UniFi APs include Hotspot functionality:

  • Built-in support for billing integration using major credit cards.
  • Built-in support for voucher-based authentication.
  • Built-in Hotspot Manager for voucher creation, guest management, and payment refund.
  • Full customisation and branding of Hotspot portal pages.

Multi-Site management

A single UniFi Controller running in the cloud can manage multiple sites: multiple, distributed deployments and multi-tenancy for managed service providers. Each site is logically separated and has its own configuration, maps, statistics, guest portal, and administrator read/write and read-only accounts. Contact us if you'd like a hosted Cloud Controller service that takes the hassle out of managing single or multi-tenancy sites and ensures your data remains secure and readily available to you when you need it.

803.2at Power over Ethernet (PoE+)

Deploying a Ubiquiti UAP-AC-PRO UniFi AP in a remote or difficult locations is made easier with integrated 803.2at Power over Ethernet (PoE+) functionality that allows both power and data to be carried over a single Ethernet cable to the access point. (Passive Power over Ethernet (48V), 803.2af/af Supported (Supported Voltage Range: 44 to 57VDC)).

*Important Outdoor installation requirements

The Ubiquiti UAP-AC-PRO UniFi AP may be installed outdoors under an eave or other protected location. Do not install the UniFi AP in an open environment. The mounting location should be at least 60 cm (2 ft) from the edge of the eave or ceiling and the cable feed must be pointed downwards when wall-mounted. Shielded Category 5 (or above) cabling should be used for all outdoor wired Ethernet connections and should be grounded through the AC ground of the PoE. We recommend that you protect your networks from harmful outdoor environments and destructive ESD events with industrial-grade, shielded Ethernet cable from Ubiquiti Networks



View full details

Explore Further

Highlights

WiFi Standard 802.11n/ac/WiFi 5
Radios/Antenna 3x3
2.4GHz - 450Mbps
5GHz - 1300Mbps
Gigabit Ethernet Ports - 2
PoE 802.3af PoE /802.3at PoE+
PoE Adapter Included Yes 1 X 48V DC 0.5A GbE
Concurrent Clients 250+
Cloud Management Yes
Captive Portal Yes
Wave 2 MU-MIMO - No
Coverage 140 m² (1,500 ft²)
Band Steering Yes

Dimensions and Weight

Width 197 mm, Depth 197 mm, Height 35 mm,Weight 1.1 kg

Specification

Hardware

Dimensions
196.7 x 196.7 x 35 mm (7.74 x 7.74 x 1.38")
Weight
350 g (12.4 oz)
With Mounting Kits
450 g (15.9 oz)

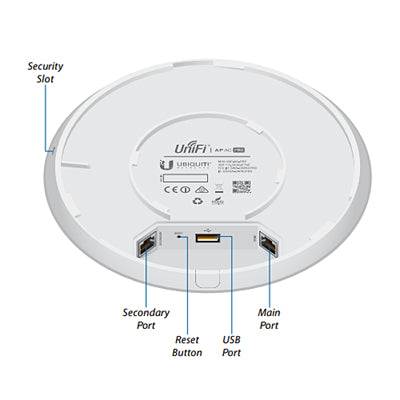

Networking Interface
(2) 10/100/1000 Ethernet Ports
Port
(1) USB 2.0 Port
Buttons
Reset
Antennas (3)
Dual-Band Antennas, 3 dBi Each
WiFi Standards
802.11 a/b/g/n/ac
Power Method
Passive Power over Ethernet (48V)
802.3af/803.2at Supported
(Supported Voltage Range: 44 to 57VDC)
Power Supply
48V, 0.5A PoE Gigabit Adapter (included)
Maximum Power Consumption
9W
Maximum TX Power
2.4 GHz
22 dBm
5 GHz
22 dBm
BSSID
Up to Four per Radio
Power Save
Supported
Wireless Security
WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
Certifications
CE, FCC, IC
Mounting
Wall/Ceiling (Kits Included)
Operating Temperature
-10 to 70° C (14 to 158° F)
Operating Humidity
5 to 95% Noncondensing
Advanced Traffic Management
VLAN
802.1Q
Advanced QoS
Per-User Rate Limiting
Guest Traffic Isolation
Supported
WMM
Voice, Video, Best Effort, and Background
Concurrent Clients
200+
Supported Data Rates (Mbps)
Standard/Data Rates
802.11a
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n
6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40)
802.11ac
6.5 Mbps to 1300 Mbps (MCS0 - MCS9 NSS1/2/3, VHT 20/40/80)
802.11b
1, 2, 5.5, 11 Mbps
802.11g
6, 9, 12, 18, 24, 36, 48, 54 Mbps
Warranty
1-year

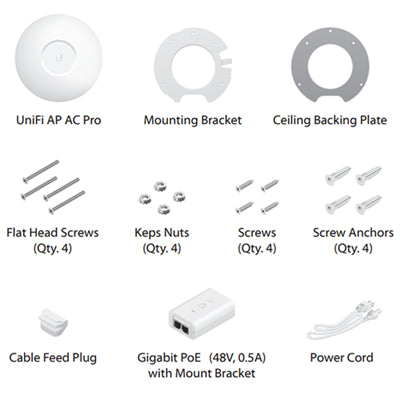

Package Contents

1 x UniFi AP AC Pro
1 x PoE Injector
1 x Mounting Bracket
1 x Ceiling Backing Plate
4 x Flat Head Screws
4 x Keps Nuts
4 x Screws
4 x Screw Anchors
1 x Cable Feed
1 x Quick Start Guide
