Ubiquiti UAP-NanoHD UniFi WiFi 5 PoE Access Point (2Gbps AC) With PoE Injector

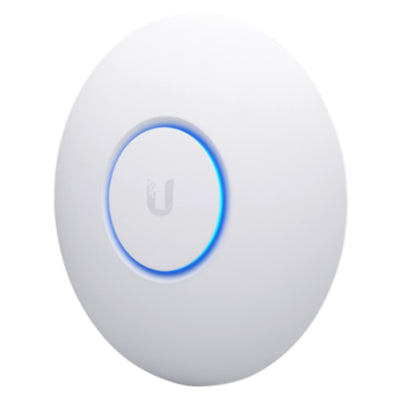

The Ubiquiti UniFi NanoHD APs are equipped with advanced Wi-Fi 802.11ac Wave 2 MU-MIMO technology and boast a sleek industrial design. The UAP-NanoHD, a compact version of the UAP-AC-HD, excels in high-density settings, outperforming the UAP-AC-PRO. It supports simultaneous dual-band operation and 4x4 MU-MIMO technology, along with convenient 802.3af PoE compatibility. These APs are available for purchase in single and five-pack bundles.
Key Features
- Mediatek 802.11ac Wave 2
- 2x2 Multi-User MIMO on 2.4 GHz (300 Mbps physical rate)
- 4x4 MIMO on 5 GHz (1733 Mbps physical rate)
- Real-world 5 GHz throughput: 750 Mbps (preliminary)
- Antenna system optimised for 802.11ac Wave 2 MU-MIMO beamforming.
- Compact Form Factor for subtle deployment.

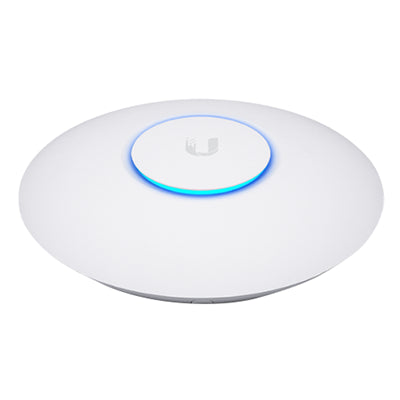

- Low-profile ceiling mount (sold separately) allows you to seamlessly integrate the AP into its environment.
- The unique LED provisioning ring provides administrator location tracking and alerts for each device
Power over Ethernet (PoE) Standard
The UniFi nanoHD AP can be powered by an 802.3af PoE-compliant switch. Please note this product is not compatible with passive PoE Toughswitches.
Superior Processing Power
The UniFi nanoHD AP is capable of complex operations (guest control, filtering, and other resource-intensive tasks) that may slow down a lesser-equipped AP.
Scalable Enterprise WiFi Management
UniFi is the revolutionary WiFi system that combines enterprise performance, unlimited scalability and a central management controller. The UniFi nanoHD AP has a refined industrial design and can be easily installed using the included mounting hardware. Easily accessible through any standard web browser and the UniFi mobile app (iOS or Android), the UniFi Controller software is a powerful software engine ideal for high-density client deployments requiring low latency and high uptime performance. Use the UniFi Controller software to quickly configure and administer an enterprise WiFi network - no special training required. RF map and performance features, real-time status, automatic UAP device detection, and advanced security options are all seamlessly integrated.
Save Money and Time
UniFi comes bundled with a non-dedicated software controller that can be deployed on an on-site PC, Mac, or Linux machine; in a private cloud; or using a public cloud service. You also have the option of deploying the compact UniFi Cloud Key with built-in software.
Powerful Hardware
The UniFi nanoHD AP features the latest in WiFi 802.11ac Wave 2 MU-MIMO technology.
Intuitive UniFi Controller Software
Configure and manage your APs with the easy-to-learn user interface.
Expandable

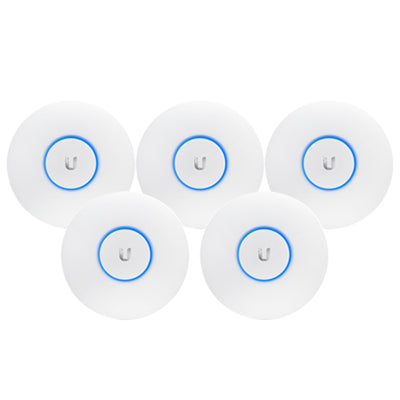

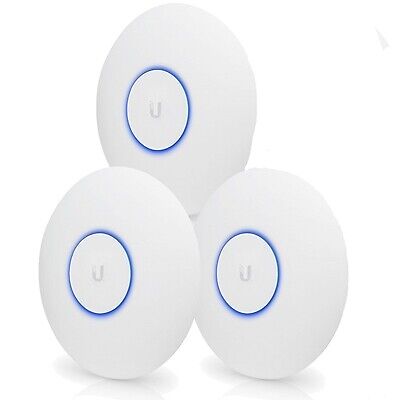

Unlimited scalability: build wireless networks as big or small as needed. Start with one (or upgrade to a three or five pack) and expand to thousands while maintaining a single unified management system.
Extend Your Coverage
With the UniFi Controller software running in a NOC or in the cloud, administrators can manage multiple sites: multiple, distributed deployments and multi-tenancy for managed service providers.
UniFi Controller
Use the UniFi Controller to provision thousands of UniFi APs, map out networks, quickly manage system traffic and provision additional UniFi APs.
View Your RF Environment
Use the RF environment functionality of the UniFi nanoHD AP to detect and troubleshoot nearby interference, analyse radio frequencies, choose optimal AP placement, and configure settings.
Powerful RF Performance Features
Advanced RF performance and configuration features include spectral analysis, airtime fairness and band steering.
Detailed Analytics
Use the configurable reporting and analytics to manage large user populations and expedite troubleshooting.
Wireless Uplink
Wireless Uplink functionality enables wireless connectivity between APs for extended range. One wired UniFi AP uplink supports up to four wireless downlinks on a single operating band, allowing wireless adoption of devices in their default state and real-time changes to network topology.
Guest Portal/Hotspot Support
Easy customisation and options for Guest Portals include authentication, Hotspot setup and the ability to use your own external portal server. Use UniFi's rate limiting for your Guest Portal/Hotspot package offerings. Apply different bandwidth rates (download/upload), limited total date usage, and limit duration of use.
All UniFi APs include Hotspot functionality:
- Built-in support for billing integration using major credit cards
- Built-in support for voucher-based authentication
- Built-in Hotspot Manager for voucher creation, guest management and payment refunds.
- Full customisation and branding of Hotspot portal pages
Multi-Site Management
A single UniFi Controller funning in the cloud can manage multiple sites: multiple, distributed deployments and multi-tendency for managed service providers. Each site is logically separated and has its own configuration, maps, statistics, guest portal, and administrator read/write and read-only accounts.
WLAN Groups
The UniFi Controller can manage flexible configurations of large deployments. Create multiple WLAN groups and assign them to an AP's radio. Each WLAN can be VLAN tagged. Dynamic VLAN tagging per WiFi station (or RADIUS VLAN) is also supported. 802.11ac Wave 2 MU-MIMO (Multi-User, Multiple Input, Multiple Output) technology allows a Wave 2 AP, such as this UniFi nanoHD AP, to communicate with multiple clients at the same time - significantly increasing multi-user throughput and overall user experience. For high-density environments, such as a theatre where there are numerous clients in a relatively small space, the nanoHD AP is recommended when a minimal footprint is also required.
Both Wave 1 and Wave 2 APs offer 28 independent (non-overlapping) channels: three for the 2.4 GHz band and twenty-five for the 5 GHz band, including DFS channels. When you use the 2.4 GHz band in a high-density location, you encounter self-interference and channel saturation. When you use the 5 GHz band, you can deploy smaller cells (coverage areas), so you can support more clients in any cell that deploys more than one AP. With the advantages of MU-MIMO technology and 4x4 spacial streams, the UniFi nanoHD AP can support more than triple the number of users than a typical Wave 1 AP*
* Depending on environmental and installation conditions.
Share






Explore Further
Highlights
WiFi Standard 802.11n/ac/WiFi 5
Radios/Antenna 4x4
2.4GHz - 300Mbps
5GHz - 1733Mbps
Gigabit Ethernet Ports - 1
PoE 802.3af PoE
PoE Adapter Included Yes 1 x 48v DC, 0.3A GbE
Concurrent Clients 200+
Cloud Management Yes
Captive Portal Yes
Wave 2 MU-MIMO - Yes
Coverage 140 m² (1,500 ft²
Band Steering Yes
Dimensions and Weight
Width 160 mm, Depth 33 mm, Height 160 mm,Weight 1.4 kg
Specification
HARDWARE SPECIFICATIONS
Dimensions:
160 x 160 x 32.65 mm (6.30 x 6.30 x 1.29")
Weight:
300 g (10.6 oz)
With Mounting Kits:
315 g (11.1 oz)

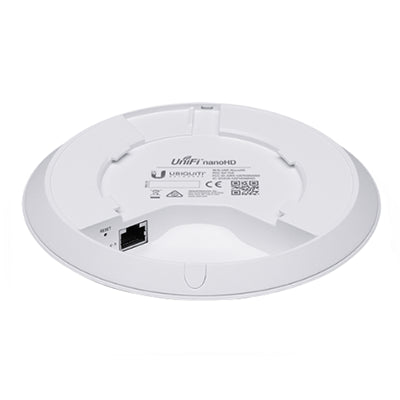

Networking Interface:
(1) 10/100/1000 Ethernet Port
Buttons:
Reset
Power Method:
802.3af PoE
Maximum Power Consumption:
10.5W
Supported Voltage Range:
44 to 57VDC
TX Power
2.4 GHz: 23 dBm
5 GHz: 26 dBm
MIMO
2.4 GHz: 2x2
5 GHz: 4x4
Radio Rates
2.4 GHz: 300 Mbps
5 GHz: 1733 Mbps
Antennas
2.4 GHz: 2.8 dBi
5 GHz: 3 dBi
WiFi Standards
802.11 a/b/g/n/ac/ac-wave2
Wireless Security
WEP,WPA-PSK,WPA-Enterprise (WPA/WPA2,TKIP/AES)
BSSID:
8 per Radio
Mounting:
Wall/Ceiling (Kits Included)
Operating Temperature:
-10 to 70° C (14 to 158° F)
Operating Humidity:
5 to 95% Noncondensing
Certifications:
CE, FCC, IC
ADVANCED TRAFFIC MANAGEMENT SPECIFICATION
VLAN:
802.1Q
Advanced QoS:
Per-User Rate Limiting
Guest Traffic Isolation:
Supported
WMM:
Voice, Video, Best Effort, and Background
Concurrent Clients:
200+
SUPPORTED DATA RATES (Mbps)
Standard:
802.11a: 6,9,12,18,24,36,48,54 Mbps
802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac: 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80)
802.11b: 1,2,5.5,11 Mbps
802.11g: 6,9,12,18,24,36,48,54 Mbps
Package Contents
UAP AC NanoHD x 5
Mounting Bracket x 5
Ceiling Backing Plate x 5
Screws x 20
Flat Head Screws x 20
Keps Nuts x 20
Screw Anchors x 20
Quick Start Guide
Warranty Information
