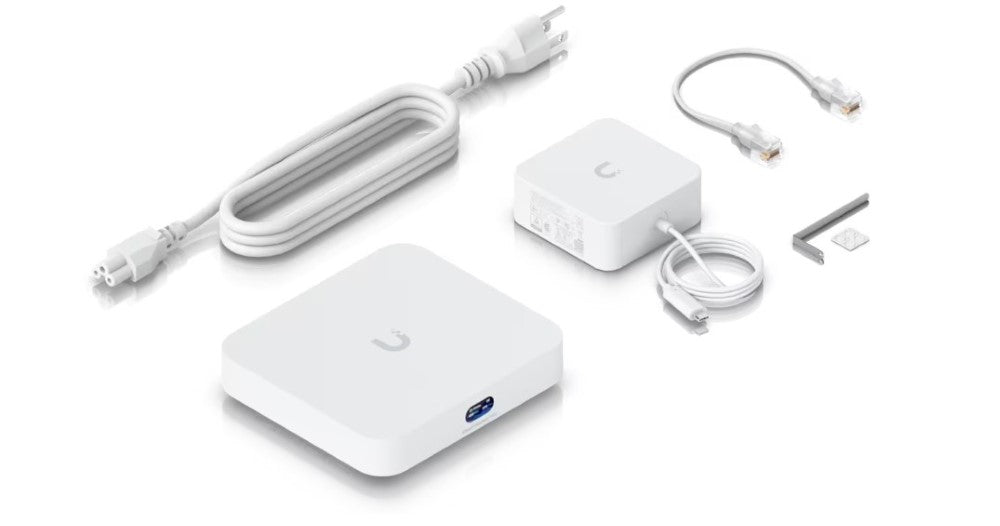

  • Ubiquiti-UCG-Max-UniFi-Cloud-Gateway- Max-Box-Contents
  • Ubiquiti-UCG-Max-UniFi-Cloud-Gateway- Max-Dimensions-View
  • Ubiquiti-UCG-Max-UniFi-Cloud-Gateway-Max-Front-Rear-Described
  • Ubiquiti-UCG-Max-UniFi-Cloud-Gateway-Max-LED-Screen-View

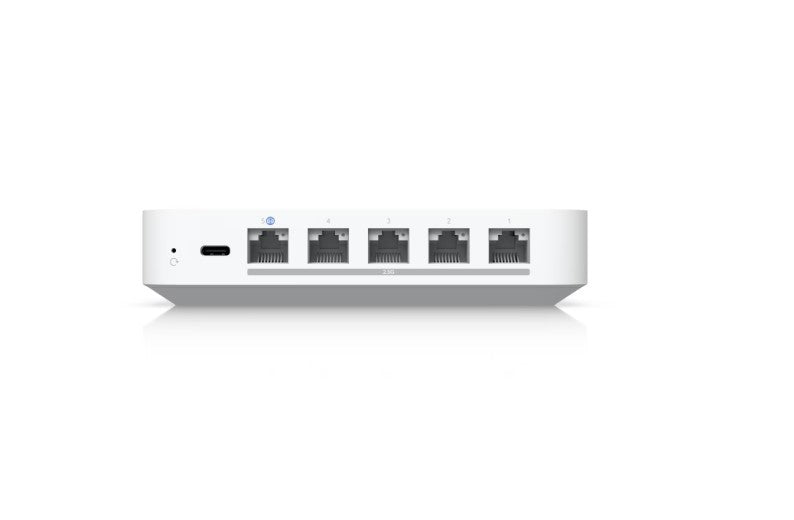

  • Ubiquiti-UCG-Max-UniFi-Cloud-Gateway-Max-Rear-Ports-View
  • Ubiquiti-UCG-Max-UniFi-Cloud-Gateway-Max-Side-View

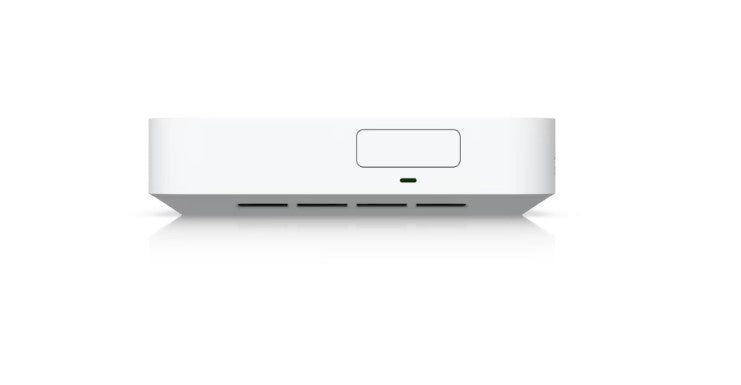

  • Ubiquiti-UCG-Max-UniFi-Cloud-Gateway-Max-SSD-Access-View
1 8

Ubiquiti

Ubiquiti UCG-Max Cloud Gateway Max Broadband Router

Ubiquiti UCG-Max Cloud Gateway Max Broadband Router

£369.99
£369.99
Sale Sold out
Tax included. Shipping calculated at checkout.
Hub/Switch storage options

Ubiquiti UCG-Max UniFi Cloud Gateway Max Broadband Router 2.5G with 30+ UniFi Device 300 plus clients support



  • Includes full UniFi application suite for device management.
  • Manages 30+ UniFi devices and 300+ clients.
  • 1.5 Gbps routing with IDS/IPS.
  • Multi-WAN load balancing.
  • Choose your storage requirements 0 - 2TB NVMe SSD storage for NVR.
  • 0.96" LCM status display.
  • USB-C powered (adapter included).

4 Different Storage options available

1. No storage - will need a M.2 SSD Storage tray if adding storage (not included)

Cloud Gateway Max supports M.2 NVMe with PCIe Gen3 x2 lanes. All M.2 NVMe SSDs are compatible, but will be limited to Gen3x2 performance.

2. 512GB

3. 1TB

4. 2TB



View full details

Explore Further

Highlights

Performance
Redundant WAN with failover and load balancing
WiFi QoS with UniFi APs
Application, domain, and country-based QoS
Application and device type identification
Additional internet failover with LTE Backup
Internet quality and outage reporting

Next-generation security
Application-aware firewall rules
Signature-based IPS/IDS threat detection
Content, country, domain, and ad filtering
VLAN/subnet-based traffic segmentation
Full stateful firewall

Advanced networking
License-free SD-WAN
WireGuard, L2TP and OpenVPN server
OpenVPN client
OpenVPN and IPsec site-to-site VPN
One-click Teleport and Identity VPN
Policy-based WAN and VPN routing
DHCP relay
Customizable DHCP server
IGMP proxy
IPv6 ISP support

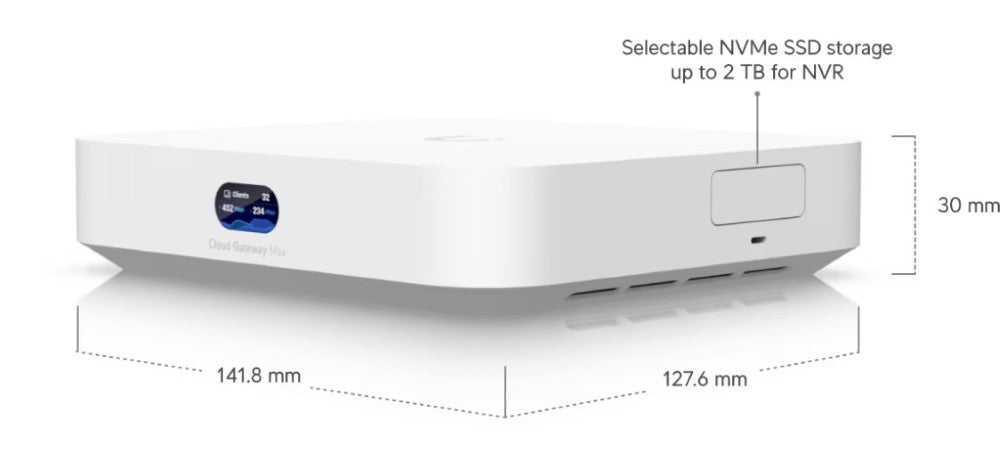

Dimensions and Weight

Width 141.8 mm, Depth 127.6 mm, Height 30 mm,Weight 0.46 kg

Specification

Mechanical
Dimensions 141.8 x 127.6 x 30 mm (5.6 x 5 x 1.2")
Weight 460 g (1 lb)
Enclosure material Polycarbonate
Hardware
Processor Quad-core ARM® Cortex®-A53 at 1.5 GHz
System memory 3 GB DDR4
Storage Selectable NVMe SSD up to 2 TB
Management interface Ethernet
Bluetooth

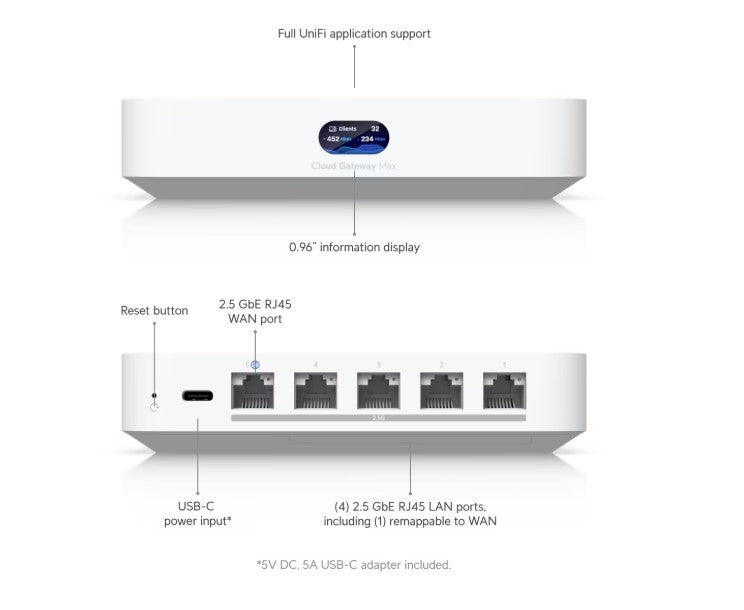

Networking interface LAN:
(4) 1/2.5 GbE RJ45 ports

WAN:
(1) 1/2.5 GbE RJ45 port
IDS/IPS throughput 1.5 Gbps*
*Measured with iPerf3 on a DHCP network. Performance may be reduced with PPPoE depending on ISP implementation.
Power method USB type C (5V DC/5A)
Supported voltage range 100–240V AC
Max. power consumption 16.1W

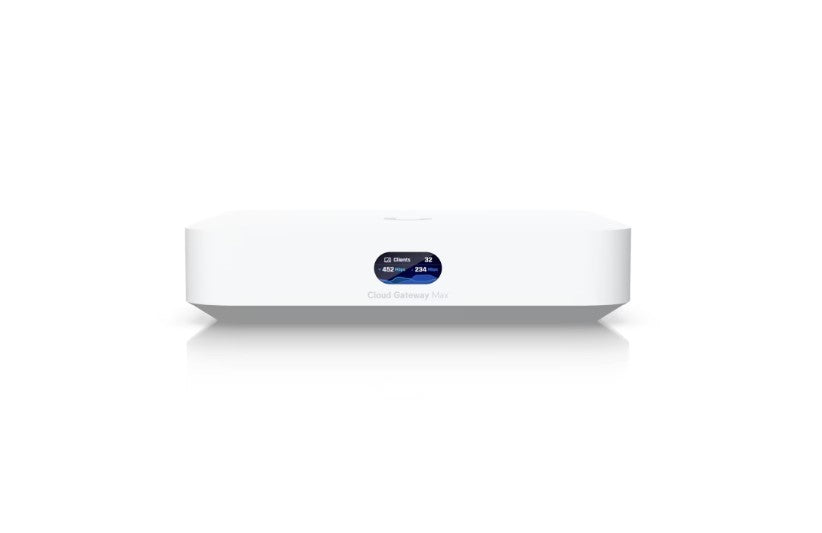

LCM display 0.96" status display
Button Factory reset
Ambient operating temperature -10 to 40° C (14 to 104° F)
Ambient operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
Gateway Features
Performance Redundant WAN with failover and load balancing
WiFi QoS with UniFi APs
Application, domain, and country-based QoS
Application and device type identification
Additional internet failover with LTE Backup
Internet quality and outage reporting
Next-generation security Application-aware firewall rules
Signature-based IPS/IDS threat detection
Content, country, domain, and ad filtering
VLAN/subnet-based traffic segmentation
Full stateful firewall
Advanced networking License-free SD-WAN
WireGuard, L2TP and OpenVPN server
OpenVPN client
OpenVPN and IPsec site-to-site VPN
One-click Teleport and Identity VPN
Policy-based WAN and VPN routing
DHCP relay
Customizable DHCP server
IGMP proxy
IPv6 ISP support
LEDs
Ethernet Green: link/activity
Application Requirements
Mobile app UniFi iOS™ and Android™: Version 10.17.2 and later

Warranty Information

All products come with a minimum 12 Months Warranty - Please check the Specification Section to see if longer!
