Ubiquiti UniFi USW-48-POE 48 Port POE 195W Switch
Ubiquiti UniFi USW-48-POE 48 Port POE 195W Switch
Ubiquiti USW-48-PoE UniFi 48-Port Cloud Managed Rackmount Gigabit PoE+ Layer 2 Switch With 4 x 1GbE SFP Ports 195W
The Ubiquiti USW-48-PoE UniFi 48-Port Cloud Managed Gigabit PoE+ Switch provides Gigabit PoE links to your RJ45 Ethernet devices and Gigabit fibre uplink options to your enterprise network. The USW-48-PoE features a 1.3-inch touch LCM to provide status.
Key Features
- Forty-eight (48) Gigabit Ethernet ports including thirty-two (32) 802.3at PoE+ ports.
- Four (4) 1GbE SFP ports.
- 195W total PoE availability
- Fanless, silent cooling
- 1.3-inch touch LCM.
- 1U Rackmountable (hardware included).
- Managed by UniFi Controller.
- 210W Power supply.
Share
Explore Further
Highlights
Forty-eight (48) Gigabit Ethernet ports including thirty-two (32) 802.3at PoE+ ports.
Four (4) 1GbE SFP ports.
195W total PoE availability
Fanless, silent cooling
1.3-inch touch LCM.
1U Rackmountable (hardware included).
Managed by UniFi Controller.
210W Power supply.

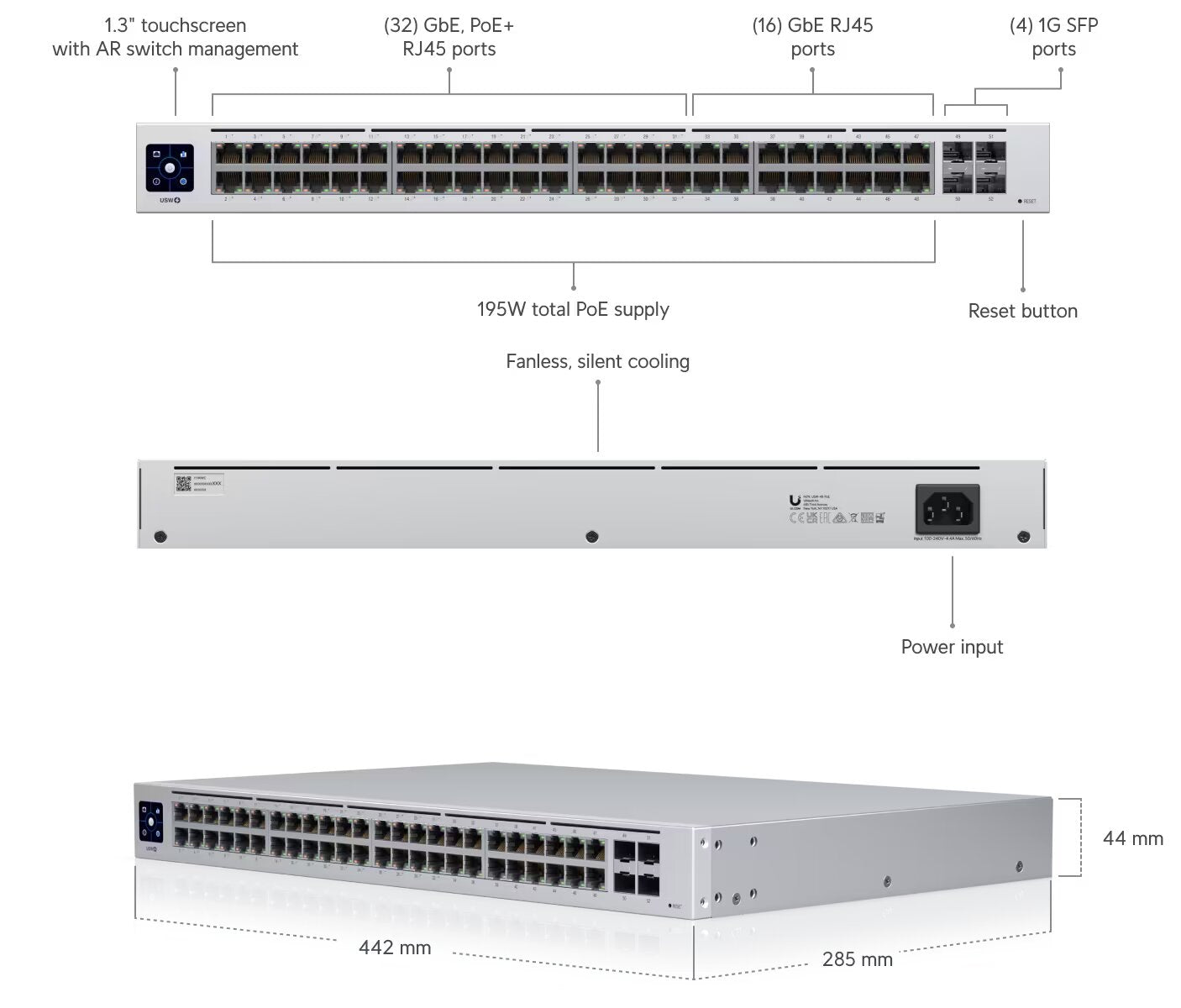

Dimensions and Weight
Width 442 mm, Depth 285 mm, Height 44 mm,Weight 4.6 kg
Specification
Dimensions 442 x 285 x 44 mm (17.4 x 11.2 x 1.7")
Weight Without mounting brackets: 4.5 kg (10 lb)
With mounting brackets: 4.6 kg (10.2 lb)
Enclosure material SGCC steel
Hardware
Management interface Ethernet In-Band
Networking interface (48) GbE RJ45 ports
(4) 1G SFP ports
PoE interface (32) PoE/PoE+ (Pins 1, 2+; 3, 6-)
Total non-blocking throughput 52 Gbps
Switching capacity 104 Gbps
Forwarding rate 77.38 Mpps
Power method Universal input, 100—240V AC, 50/60 Hz
Power supply AC/DC, internal, 240W
Supported voltage range 100—240V AC
Max. power consumption 45W (Excluding PoE output)
Total PoE available 195W
Max. PoE wattage per port by PSE PoE+: 32W
Voltage range PoE mode PoE: 44—57V
PoE+: 50—57V
ESD/EMP protection Air: ± 16kV, contact: ± 12kV
Shock and vibration ETSI300-019-1.4 Standard
Ambient operating temperature -5 to 40° C (23 to 104° F)
Ambient operating humidity 10 to 90% noncondensing
Certifications CE, FCC, IC
Switching Features
Layer 2 features IGMP snooping
STP / RSTP with priorities and port-level disable
Port isolation
Storm control
Voice VLAN
Port mirroring
LACP port aggregation
Multicast / broadcast rate limiting
MAC address blocking
Flow control
802.1X control
Jumbo frames
Proprietary loop protection
DHCP snooping / guarding
Egress rate limit
LLDP-MED
Port restricted by MAC
Device isolation with ACLs
Layer 3 features –
LEDs
System Status
Ethernet PoE
Speed/link/activity
SFP Link/activity
Warranty Information
All products come with a minimum 12 Months Warranty - Please check the Specification Section to see if longer!
