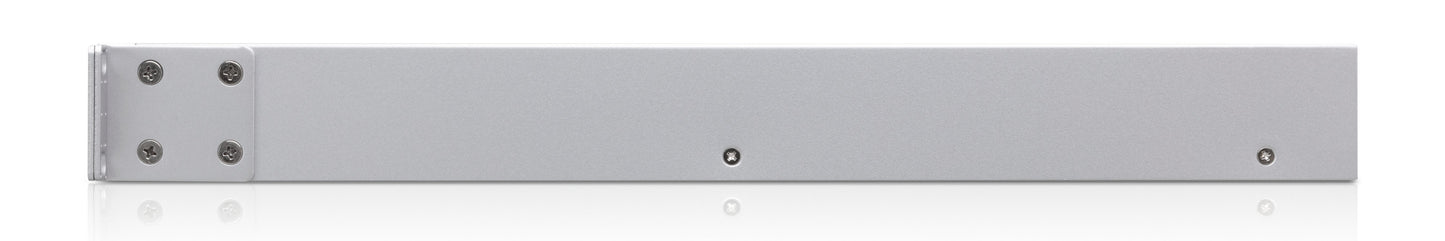

Ubiquiti UniFi USW-PRO-24-POE 24 Port POE 400W Switch

Ubiquiti UniFi USW-PRO-24-POE 24 Port POE 400W Switch

Regular price £633.99
Regular price Sale price £633.99
Sale Sold out
Tax included. Shipping calculated at checkout.

Ubiquiti USW-Pro-24-PoE 400W UniFi Gen2 24-Port L3 Managed 8 x PoE++ Access Switch With 2 x 10G SFP+ Ports

A 24-port, Layer 3 switch capable of high-power PoE++ output



The Ubiquiti USW-Pro-24-POE UniFi 24-Port Managed Rackmount Gigabit PoE+/PoE++ Switch is a configurable Gigabit Layer 2 and Layer 3 switch, with auto-sensing 802.3at PoE+ and 802.3bt PoE++. Sixteen (16) PoE+ and eight (8) PoE++ RJ45 Ethernet ports give a total of 400W PoE budget, and the two (2) SFP+ ports offer 10Gbps uplink options.

  • (16) GbE PoE+, (8) GbE PoE++ ports
  • (2) 10G SFP+ ports
  • 400W total PoE availability
  • DC power backup-ready
  • Layer 3 switching
  • Near-silent cooling
  • 1U rack-mountable (hardware included).
  • Manage your networks from a single control plane.
  • Intuitive and robust configuration, control and monitoring.
  • Remote firmware upgrade.
  • Users and guests.
  • Guest portal/hotspot support.
  • 1.3" touch LCM (Liquid Crystal Module).
View full details

Explore Further

Highlights

Layer 3 Features
In addition to Layer 2 switching protocols and features, the USW-Pro-24-POE switch offers Layer 3 capabilities, such as inter-VLAN routing, static routing, and DHCP server functionality.

Near-Silent Cooling
The USW-Pro-24-POE switch can be deployed in any workspace. Its integrated fans have built-in PWM (Power Management) control, air ducts and covers, and temperature sensors for the best user experience.

Fibre Connectivity
Two (2) SFP+ ports enable high-capacity uplinks of up to 10 Gbps, so you can directly connect to a high-performance storage server or deploy a long-distance uplink to another switch.

802.3bt PoE++
PoE support simplifies your network infrastructure and cabling. Eight (8) ports offer 802.3bt PoE++ to provide up to 64W of power (per port) to your high-power PoE devices. The remaining ports offer 802.3af/at PoE.

Redundant Power Option
The USW-Pro-24-POE switch supports an external DC input interface, the proprietary USP-RPS (sold separately) interface, as a redundant power feature for backup if the internal PSU fails.

Innovative Display
The 1.3" touchscreen displays status information for easy monitoring and quick troubleshooting.

Dimensions and Weight

Width 442 mm, Depth 285 mm, Height 44 mm,Weight 6 kg

Specification

Mechanical
Dimensions 442 x 285 x 44 mm (17.4 x 11.2 x 1.7")
Weight Without mounting brackets: 4.3 kg (9.5 lb)
With mounting brackets: 4.4 kg (9.7 lb)
Enclosure material SGCC steel
Hardware
Management interface Ethernet In-Band
Networking interface (24) GbE RJ45 ports
(2) 1/10G SFP+ ports
PoE interface (16) PoE/PoE+ (Pins 1, 2+; 3, 6-)
(8) 60W PoE++; PoE/PoE+ (Pins 1, 2+; 3, 6-) / PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)
Total non-blocking throughput 44 Gbps
Switching capacity 88 Gbps
Forwarding rate 65.472 Mpps
Power method (1) Universal input, 100—240V AC, 50/60 Hz
(1) USP-RPS DC input, 52V DC, 7.69A; 11.5V DC, 2.61A
Power supply AC/DC, internal, 450W
Supported voltage range 100—240V AC
Max. power consumption 50W (Excluding PoE output)
Total available PoE 400W
Max. PoE wattage per port by PSE PoE+: 32W
PoE++: 64W
Voltage range PoE mode PoE: 44—57V
PoE+: 50—57V
ESD/EMP protection Air: ± 16kV, contact: ± 12kV
LCM display (1) 1.3" touchscreen
Button Factory reset
Shock and vibration ETSI300-019-1.4 Standard
Ambient operating temperature -5 to 40° C (23 to 104° F)
Ambient operating humidity 10 to 90% noncondensing
Certifications CE, FCC, IC
Switching Features
Layer 2 features IGMP snooping
STP / RSTP with priorities and port-level disable
Port isolation
Storm control
Voice VLAN
Port mirroring
LACP port aggregation
Multicast / broadcast rate limiting
MAC address blocking
Flow control
802.1X control
Jumbo frames
Proprietary loop protection
DHCP snooping / guarding
Egress rate limit
LLDP-MED
Port restricted by MAC
Device isolation with ACLs
Layer 3 features DHCP for locally-managed networks
DHCP relay
Inter-VLAN routing between networks on same switch
Static routing between local networks
Network isolation with ACLs
LEDs
System Status
Ethernet PoE
Speed/link/activity
SFP+ Link/activity
RPS Status
Application Requirements
UniFi Network Version 5.10.5 and later

Warranty Information

All products come with a minimum 12 Months Warranty - Please check the Specification Section to see if longer!
