Ubiquiti UniFi USW-PRO-48-POE 48 Port POE 600W Switch
Ubiquiti UniFi USW-PRO-48-POE 48 Port POE 600W Switch

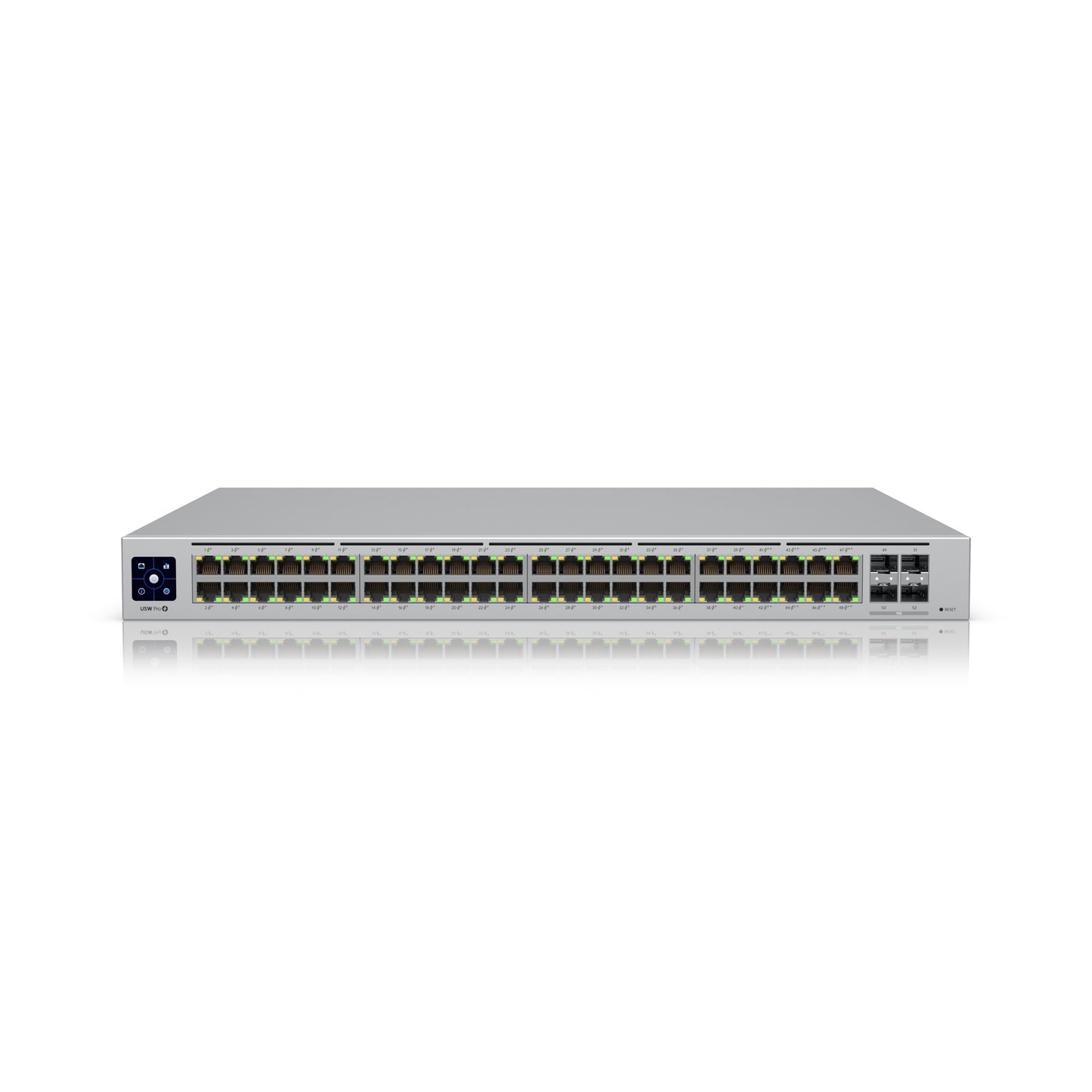

Ubiquiti USW-Pro-48-POE UniFi Gen2 48-Port Managed Rackmount Gigabit PoE+ Switch With 8 x PoE++ Ports and 4 x 10G SFP+ Ports (600W)
The Ubiquiti USW-Pro-48-POE 48-Port Managed Rackmount Gigabit PoE+/PoE++ Switch is a configurable Gigabit Layer 2 and Layer 3 switch, with auto-sensing 802.3at PoE+ and 802.3bt PoE++. Forty (40) PoE+ and eight (8) PoE++ RJ45 Ethernet ports give a total of 600W PoE budget, and the four (4) SFP+ ports offer 10Gbps uplink options.
Key Features
- Layer 3 switching
- Forty (40) PoE+ RJ45 Ethernet ports.
- Eight (8) PoE++ RJ45 Ethernet ports.
- Four (4) 10GbE SFP+ uplink ports.
- 1U rack-mountable (hardware included).
- Manage your networks from a single control plane.
- Intuitive and robust configuration, control and monitoring.
- Remote firmware upgrade.
- Users and guests.
- Guest portal/hotspot support.
-
A 48-port, Layer 3 switch capable of high-power PoE++ output.
- Near-silent cooling.
- DC power backup-ready
- 1.3" touch LCM (Liquid Crystal Module).
-
600W total PoE availability
Share
Explore Further
Highlights
Layer 3 switching
Forty (40) PoE+ RJ45 Ethernet ports.
Eight (8) PoE++ RJ45 Ethernet ports.
Four (4) 10GbE SFP+ uplink ports.
1U rack-mountable (hardware included).
Manage your networks from a single control plane.
Intuitive and robust configuration, control and monitoring.
Remote firmware upgrade.
Users and guests.
Guest portal/hotspot support.
A 48-port, Layer 3 switch capable of high-power PoE++ output.
Near-silent cooling.
DC power backup-ready
1.3" touch LCM (Liquid Crystal Module).
600W total PoE availability
Dimensions and Weight
Width 442 mm, Depth 400 mm, Height 44 mm,Weight 7 kg
Specification
Mechanical
Dimensions 442 x 400 x 44 mm (17.4 x 15.7 x 1.7")
Weight Without mounting brackets: 6.2 kg (13.8 lb)
With mounting brackets: 6.3 kg (14 lb)
Enclosure material SGCC steel
Hardware
Management interface Ethernet In-Band
Networking interface (48) GbE RJ45 ports
(4) 1/10G SFP+ ports
PoE interface (40) PoE/PoE+ (Pins 1, 2+; 3, 6-)
(8) 60W PoE++; PoE/PoE+ (Pins 1, 2+; 3, 6-) / PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)
Total non-blocking throughput 88 Gbps
Switching capacity 176 Gbps
Forwarding rate 130.944 Mpps
Power method (1) Universal input, 100—240V AC, 50/60 Hz
(1) USP-RPS DC input, 52V DC, 11.54A; 11.5V DC, 5.22A
Power supply AC/DC, internal, 660W
Supported voltage range 100—240V AC
Max. power consumption 60W (Excluding PoE output)
Total available PoE 600W
Max. PoE wattage per port by PSE PoE+: 32W
PoE++: 64W
Voltage range PoE mode PoE: 44—57V
PoE+: 50—57V
ESD/EMP protection Air: ± 16kV, contact: ± 12kV
LCM display (1) 1.3" touchscreen
Button Factory reset
Shock and vibration ETSI300-019-1.4 Standard
Ambient operating temperature -5 to 40° C (23 to 104° F)
Ambient operating humidity 10 to 90% noncondensing
Certifications CE, FCC, IC
Switching Features
Layer 2 features IGMP snooping
STP / RSTP with priorities and port-level disable
Port isolation
Storm control
Voice VLAN
Port mirroring
LACP port aggregation
Multicast / broadcast rate limiting
MAC address blocking
Flow control
802.1X control
Jumbo frames
Proprietary loop protection
DHCP snooping / guarding
Egress rate limit
LLDP-MED
Port restricted by MAC
Device isolation with ACLs
Layer 3 features DHCP for locally-managed networks
DHCP relay
Inter-VLAN routing between networks on same switch
Static routing between local networks
Network isolation with ACLs
LEDs
System Status
Ethernet PoE
Speed/link/activity
SFP+ Link/activity
RPS Status
Application Requirements
UniFi Network Version 5.10.5 and later
Warranty Information
All products come with a minimum 12 Months Warranty - Please check the Specification Section to see if longer!
