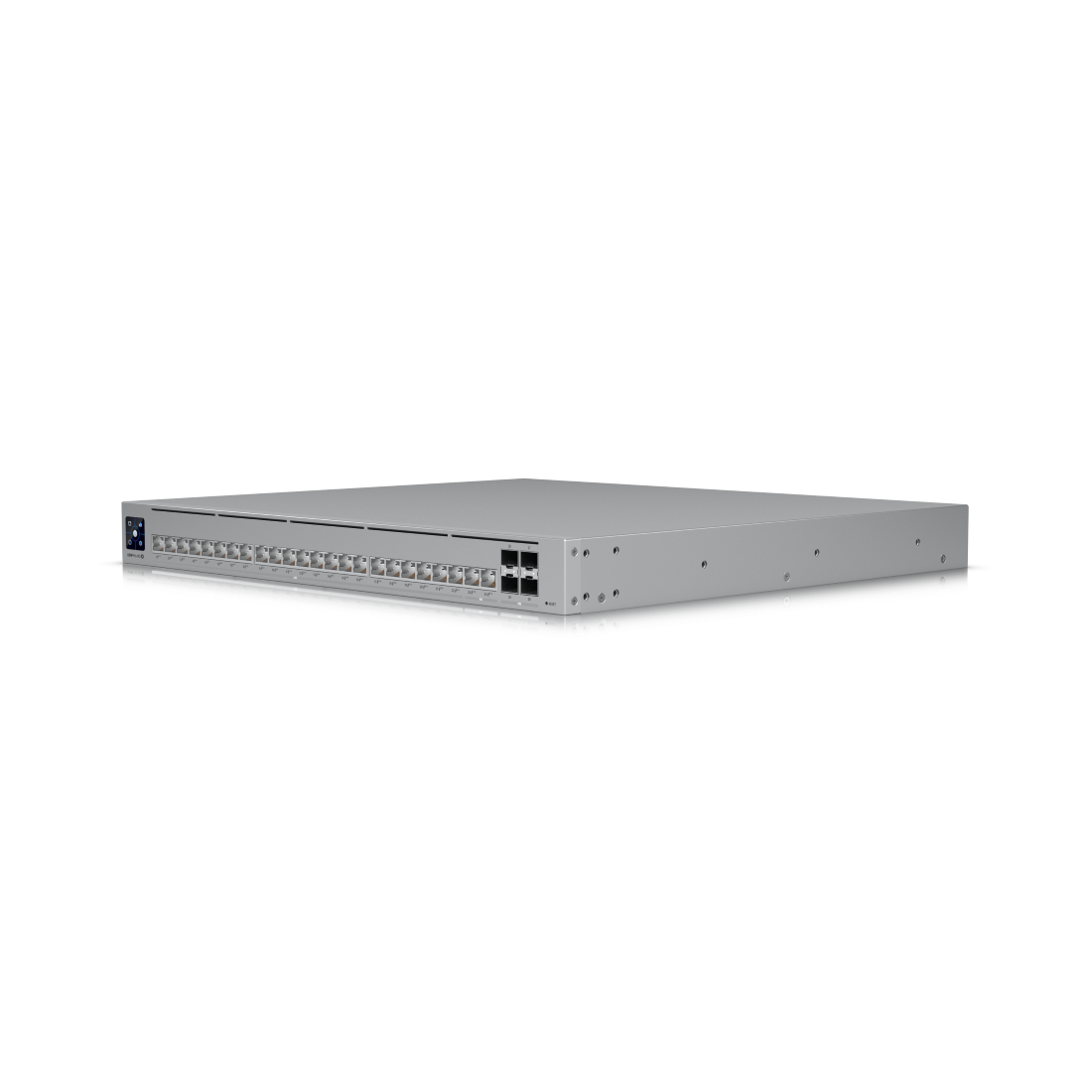

Ubiquiti UniFi USW-Pro-HD-24-PoE 24 Port POE++ 600W Switch

Layer 3 managed switch
(22) 2.5GbE PoE++, (2) 10 GbE PoE++ ports
(4) 10G SFP+ uplinks
600W PoE budget
2-Year warranty
Ubiquiti USW-Pro-HD-24-PoE UniFi 24-Port L3 Managed 2.5GbE PoE++ Access Switch

The Ubiquiti USW-Pro-HD-24-PoE UniFi 24-Port L3 Managed 2.5GbE PoE++ Access Switch is a professional-grade, Layer 3 Etherlighting switch with two (2) 10 GbE PoE++ ports, twenty-two (22) 2.5 GbE PoE++ ports, and four (4) 10G SFP+ ports. It is capable of high-power PoE++ output with a 600W power budget.

Key Features
Etherlighting ports that illuminate to indicate port location, speed/link, and native VLAN/network.
Twenty-two (22) 2.5 GbE PoE++ ports and two (2) 10 GbE PoE++ ports.
Four (4) 10G SFP+ ports.
DC power backup ready (with UniFi RPS, available separately, see accessories tab).
600W total PoE availability.
Pair with UniFi Etherlighting Patch Cables (sold separately) for optimal brightness.

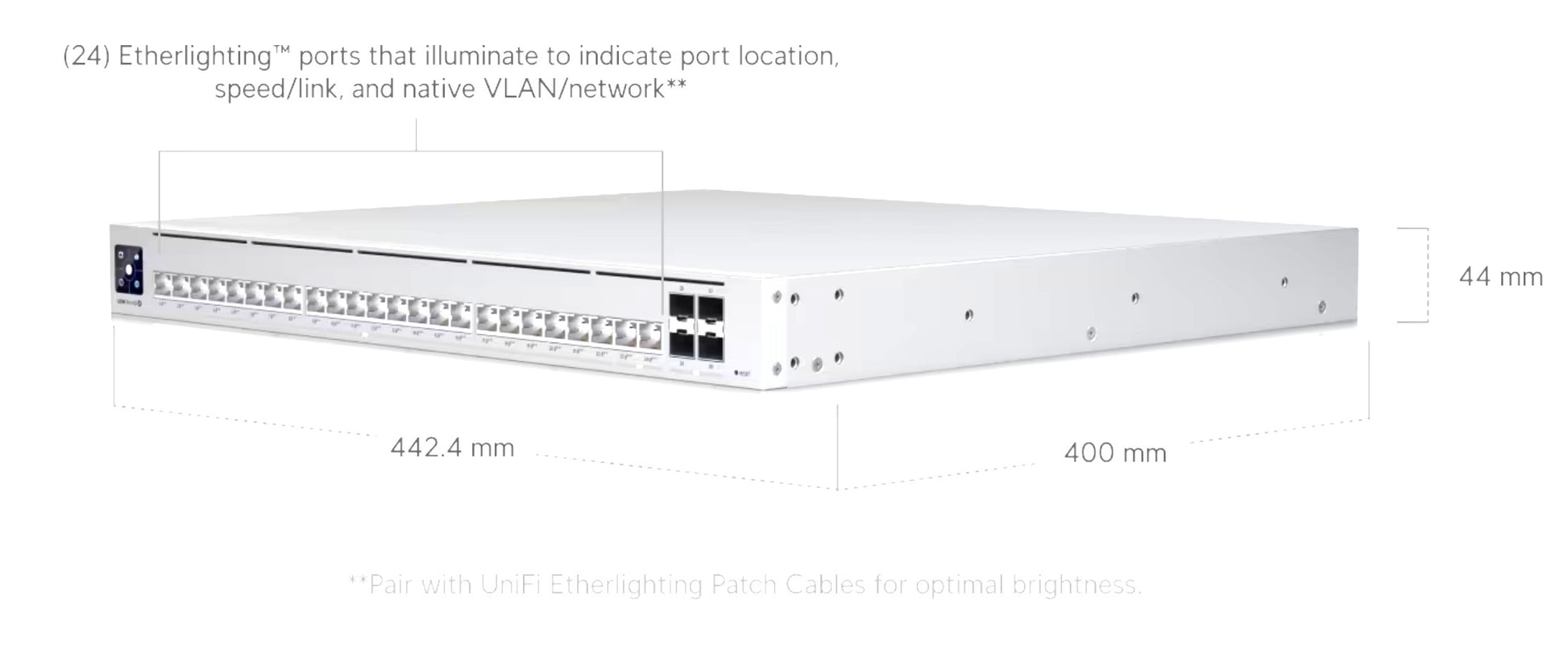

Width 442 mm, Depth 400 mm, Height 44 mm,Weight 8 kg

Dimensions
442 x 400 x 44 mm
(17.4 x 15.7 x 1.7")

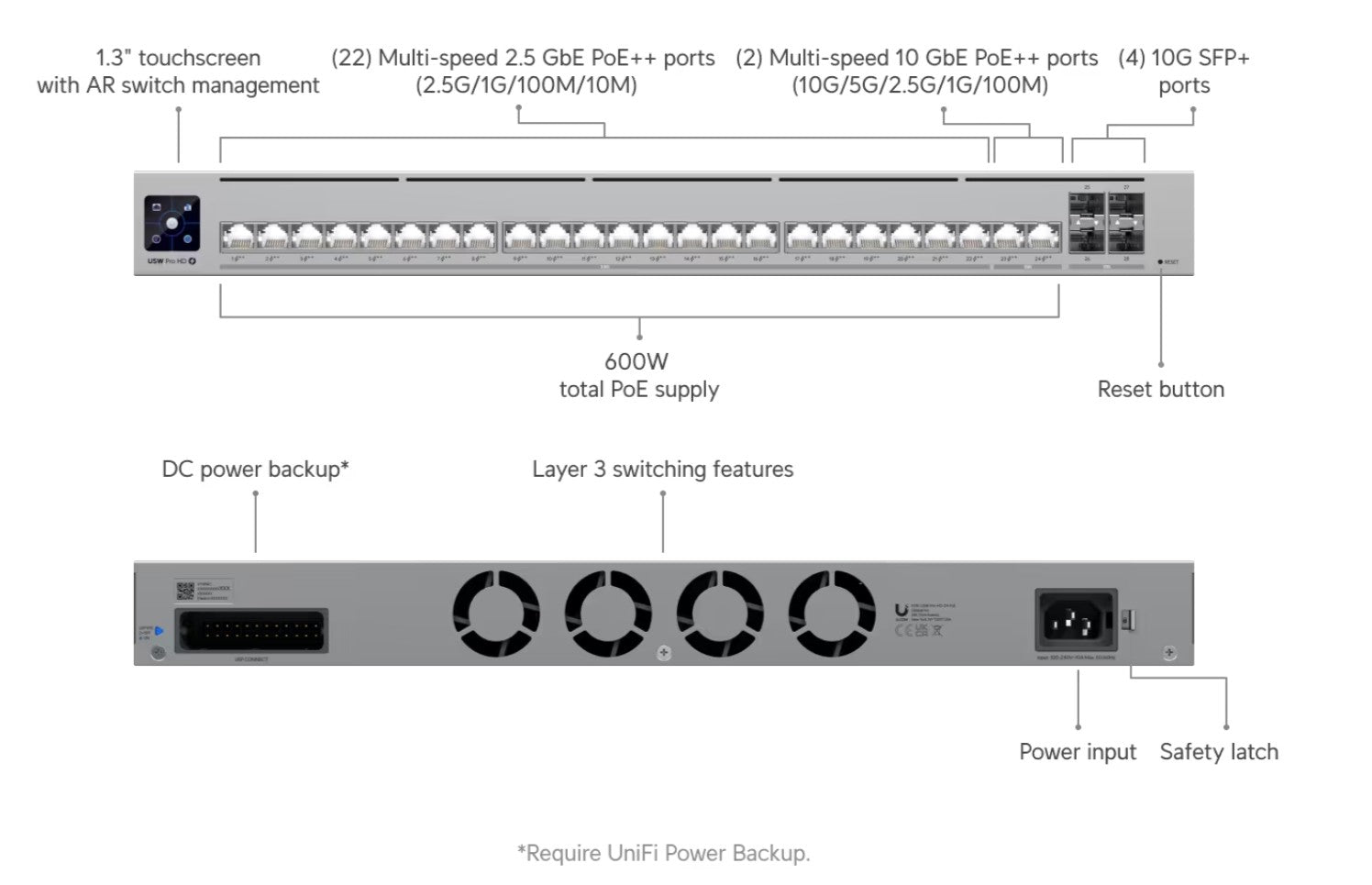

Port Layout
2.5 GbE RJ45
22 (All PoE++)
(2.5G/1G/100M/10M)
10 GbE RJ45
2 (All PoE++)
(10G/5G/2.5G/1G/100M)
10G SFP+
4
(10G/1G)
Max. PoE Output
Up to PoE++
Total PoE Availability
600W
Redundancy
DC Power Backup
Layer 3
✓
Form Factor
Rack mount (1U)
Etherlighting™
✓

Performance
Switching Capacity
230 Gbps
Total Non-Blocking Throughput
115 Gbps
Forwarding Rate
171 Mpps
Supported VLANs
1,000
MAC Address Table Size
32,000
L3 Table Size
ARP Entries
12,000
IPv4 Routes
12,000
Packet Buffer Size
2 MB
Access Lists
IPv4
128
MAC
128

Layer 3 Features
DHCP Server (Local Networks)
✓
DHCP Relay
✓
Inter-VLAN Routing (Local Networks)
✓
Static Routing (Local Networks)
✓

Layer 2 Features
LACP Port Aggregation
✓
STP & RSTP
✓
QoS (DSCP)
✓
Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)
✓
Advanced IGMP Configuration (Querier, Fast Leave, Router Port)
✓
IGMP Snooping
✓
802.1X Control
✓
MAC-Based ACLs & Device Isolation
✓
DHCP Snooping & Guarding
✓
Egress Rate Limit
✓
Flow Control
✓
Storm Control
✓
Multicast & Broadcast Rate Limiting
✓
MAC Address Blocking
✓
IP-Based ACLs & Network Isolation
✓
MAC-Based Port Restriction
✓
Port Isolation
✓
Port Mirroring
✓
Jumbo Frames
✓
LLDP-MED
✓
Voice VLAN
✓
Loop Protection
✓

Hardware
PoE Ports
PoE++
24
Max. PoE Wattage per Port by PSE
PoE
15.4W
PoE+
30W
PoE++
64W
Max. Power Consumption
60W (Excluding PoE Output)
660W (Including PoE Output)
Power Method
(1) Universal input, 100—240V AC, 50/60 Hz
(1) USP RPS DC input
Power Input Method
AC input
Power Supply
AC/DC, internal, 660W
Supported Voltage Range
100—240V AC
Management
Ethernet
AR
Weight
Without mounting brackets: 6.2 kg (13.7 lb)
With mounting brackets: 6.3 kg (13.9 lb)
Enclosure Material
SGCC steel
Mount Material
SGCC steel
Supported Rack Depth
600 - 1,200 mm
(23.6- 47.2" )
LCM Display
1.3" touchscreen
Ambient Operating Temperature
-5 to 40° C (23 to 104° F)
Ambient Operating Humidity
10 to 90% noncondensing
Etherlighting™
Ethernet
✓
SFP+
✓
NDAA Compliant
✓
Certifications
CE, FCC, IC, Anatel: 03853-25-08356

Software
Application Requirements
UniFi Network
Version 9.0.114 and later
