Ubiquiti UniFi USW-PRO-MAX-16 Layer 3 16 Port Gigabit Switch
Ubiquiti UniFi USW-PRO-MAX-16 Layer 3 16 Port Gigabit Switch
Couldn't load pickup availability

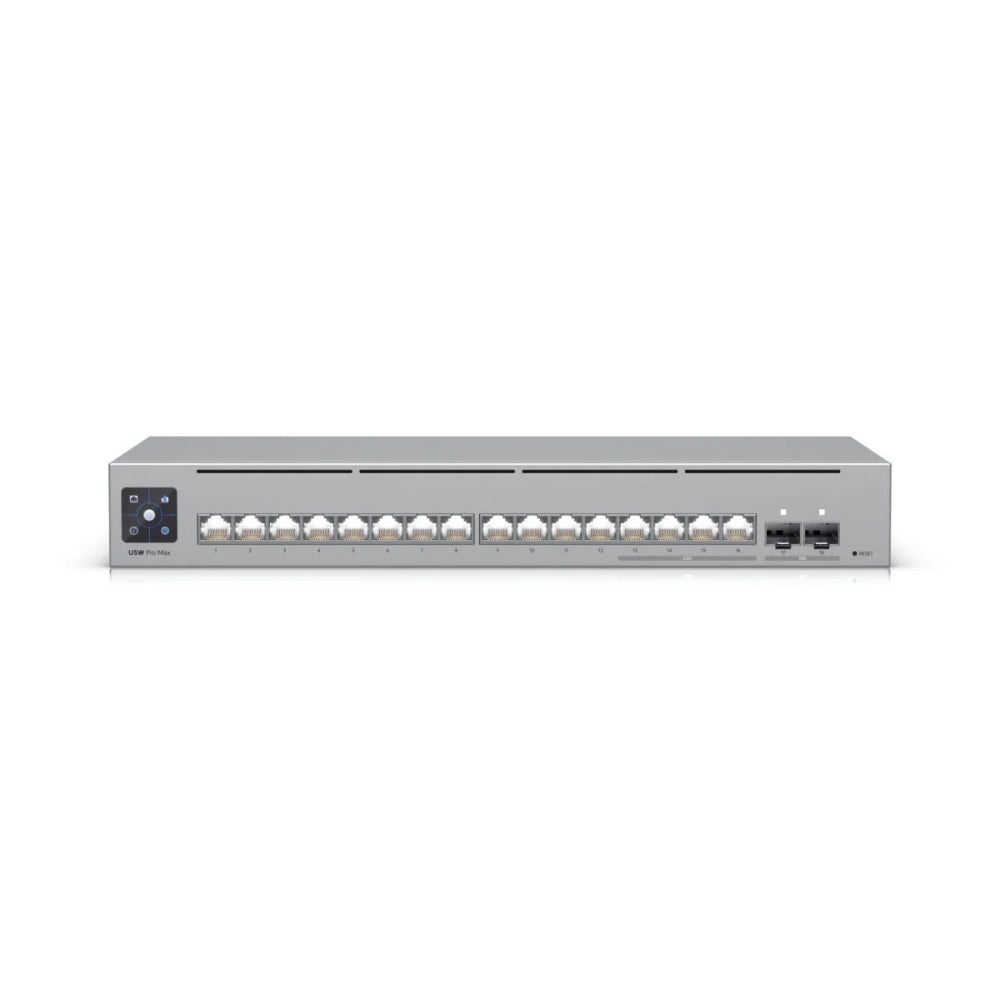

Ubiquiti USW-Pro-Max-16 UniFi 16-Port L3 Managed
Switch With Etherlighting 2.5Gbe/1GbE Ports and 2 x 10G SFP+ Ports Touchscreen Control and Fanless Cooling
A 16-port, Layer 3 Etherlighting™ switch with 84 Gbps Switching Capacity, 1000 Supported VLANs

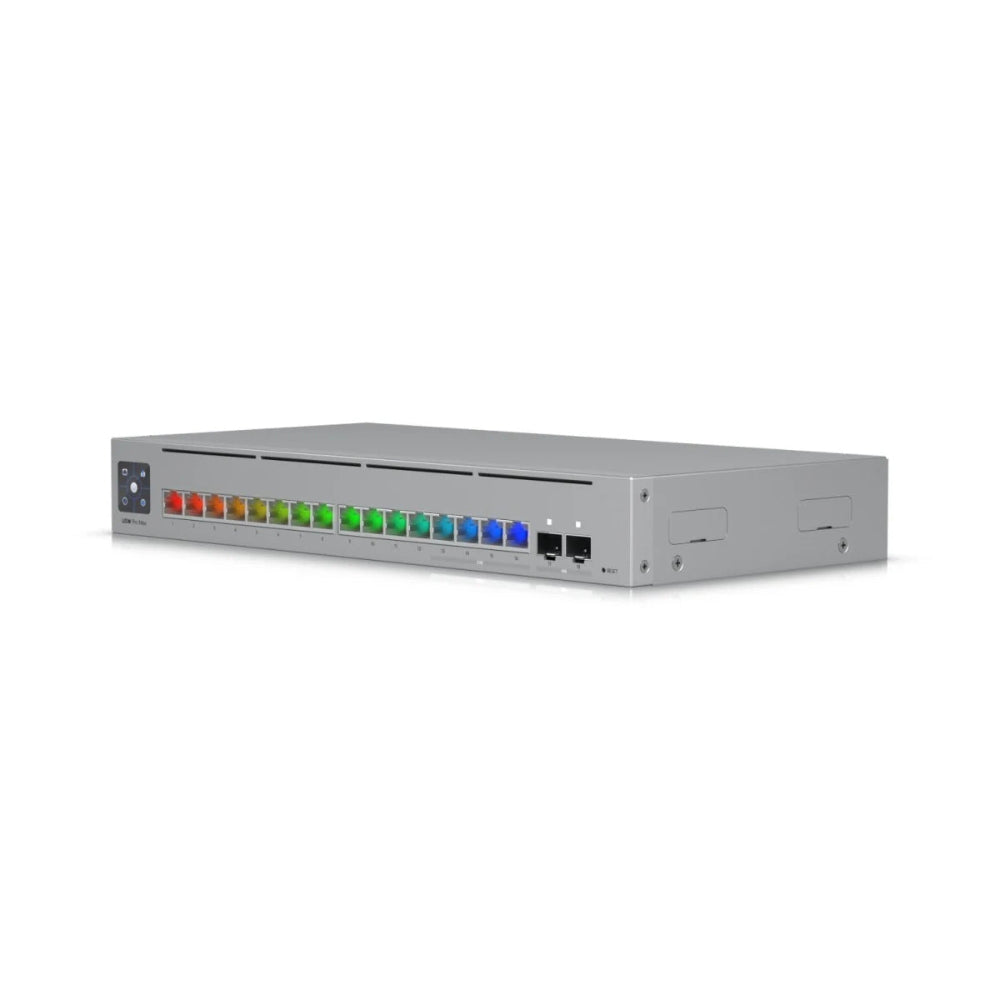

Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network*
(4) 2.5 GbE ports
(12) 1 GbE RJ45 ports
(2) 10G SFP+ ports

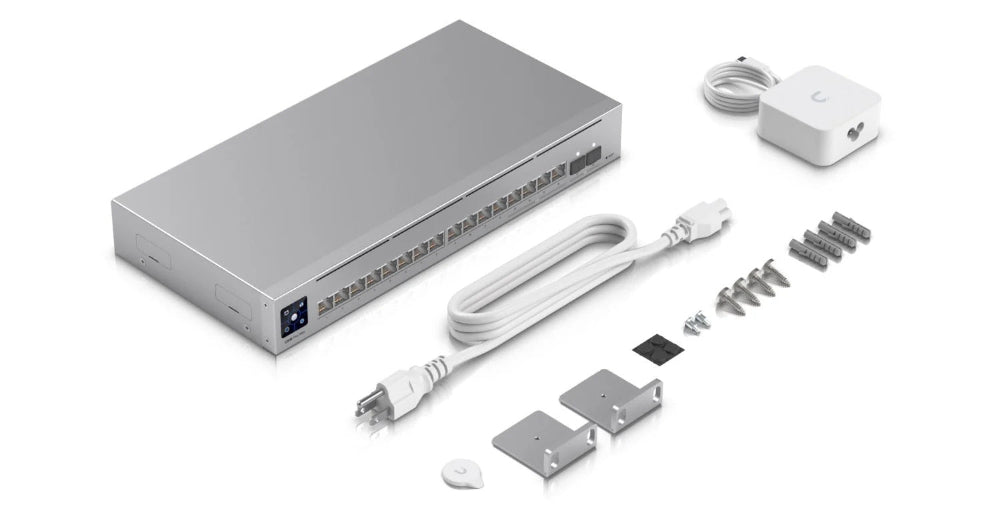

Powered by USB-C Adapter with UK Power Lead included

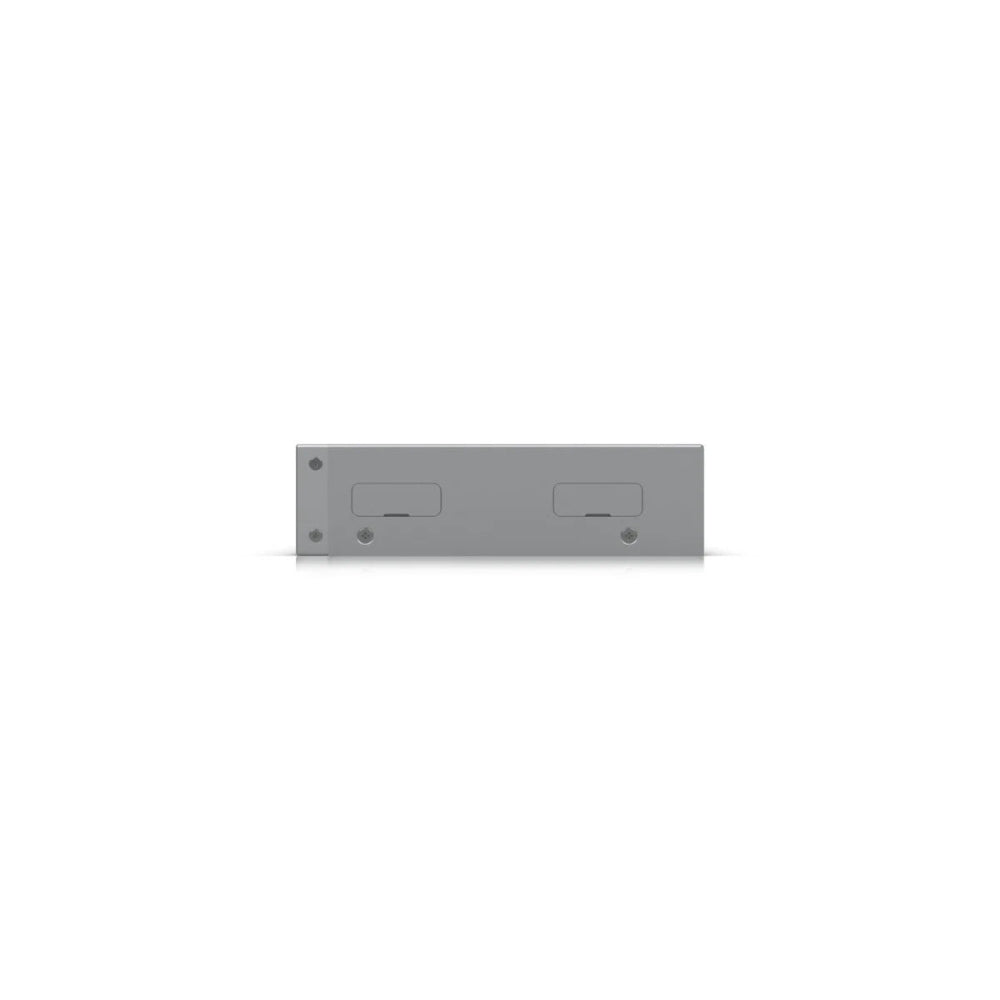

Versatile desktop, wall, and rack** mounting
*Pair with UniFi Etherlighting Patch Cables for optimal brightness.
**Requires add-on Rack Mount accessory.
Intuitive 1.3" LED Touchscreen Display for quick management
Share






Explore Further
Highlights
A 16-port, Layer 3 Etherlighting™ switch with 84 Gbps Switching Capacity, 1000 Supported VLANs
Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network*
(4) 2.5 GbE P ports
(12) 1 GbE RJ45 ports
(2) 10G SFP+ ports
Powered by USB-C Adapter with UK Power Lead included
Versatile desktop, wall, and rack** mounting
*Pair with UniFi Etherlighting Patch Cables for optimal brightness.
**Requires add-on Rack Mount accessory.
Intuitive 1.3" LED Touchscreen Display for quick management
Dimensions and Weight
Width 325.1 mm, Depth 160 mm, Height 43.7 mm,Weight 2 kg
Specification
Overview
Dimensions
325.1 x 160 x 43.7 mm
(12.8 x 6.3 x 1.7")

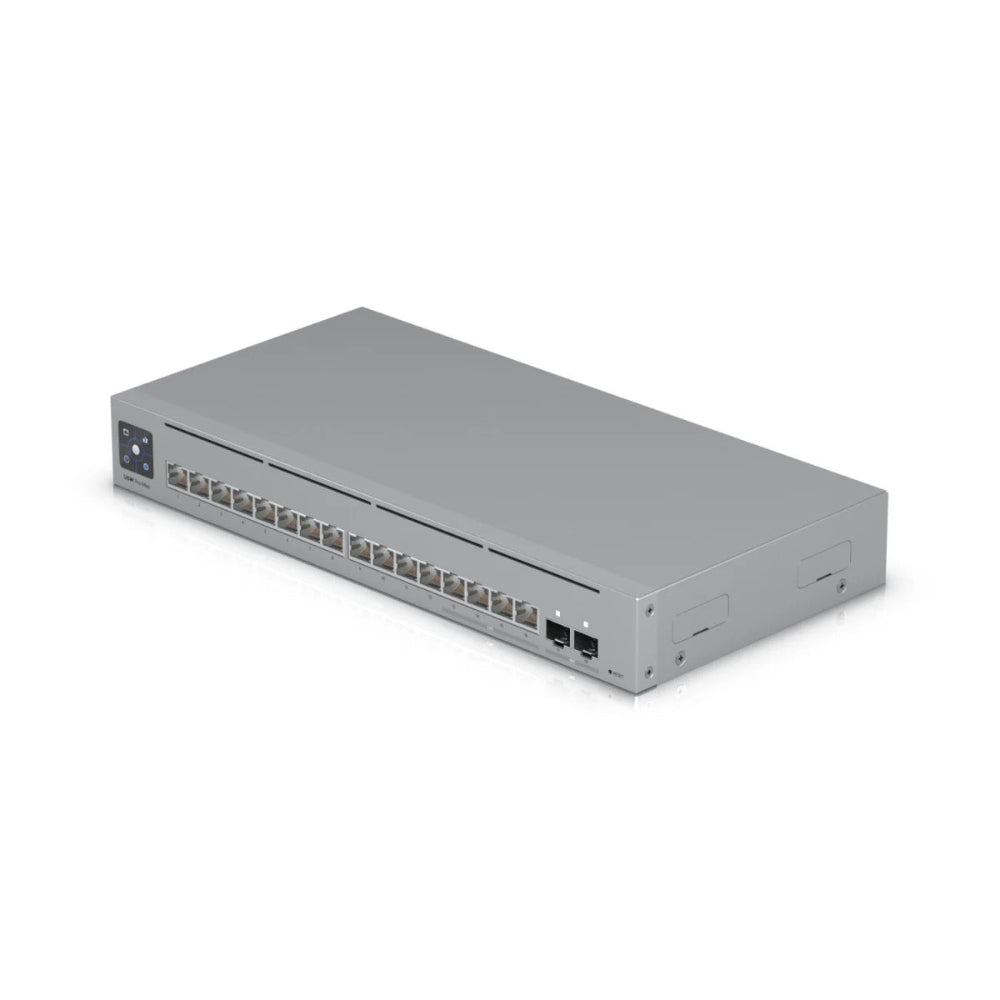

Port Layout
1 GbE RJ45
12
(1G/100M/10M)
2.5 GbE RJ45
4
(2.5G/1G/100M/10M)
10G SFP+
2
Layer 3
✓
Form Factor
Rack mount (1U), desktop, wall
Etherlighting™
✓
Performance
Switching Capacity
84 Gbps
Total Non-Blocking Throughput
42 Gbps
Forwarding Rate
62 Mpps
Supported VLANs
1,000
MAC Address Table Size
16,000
L3 Table Size
ARP Entries
6,000
IPv4 Routes
512
Packet Buffer Size
1.5 MB
Layer 3 Features
DHCP Server (Local Networks)
✓
DHCP Relay
✓
Inter-VLAN Routing (Local Networks)
✓
Static Routing (Local Networks)
✓
Layer 2 Features
LACP Port Aggregation
✓
STP & RSTP
✓
QoS (DSCP)
✓
Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)
✓
Advanced IGMP Configuration (Querier, Fast Leave, Router Port)
✓
IGMP Snooping
✓
802.1X Control
✓
MAC-Based ACLs & Device Isolation
✓
DHCP Snooping & Guarding
✓
Egress Rate Limit
✓
Flow Control
✓
Storm Control
✓
Multicast & Broadcast Rate Limiting
✓
MAC Address Blocking
✓
IP-Based ACLs & Network Isolation
✓
MAC-Based Port Restriction
✓
Port Isolation
✓
Port Mirroring
✓
Jumbo Frames
✓
LLDP-MED
✓
Voice VLAN
✓
Loop Protection
✓
Hardware
Max. Power Consumption
25W
Power Method
AC/DC Adapter (included)
Power Input Method

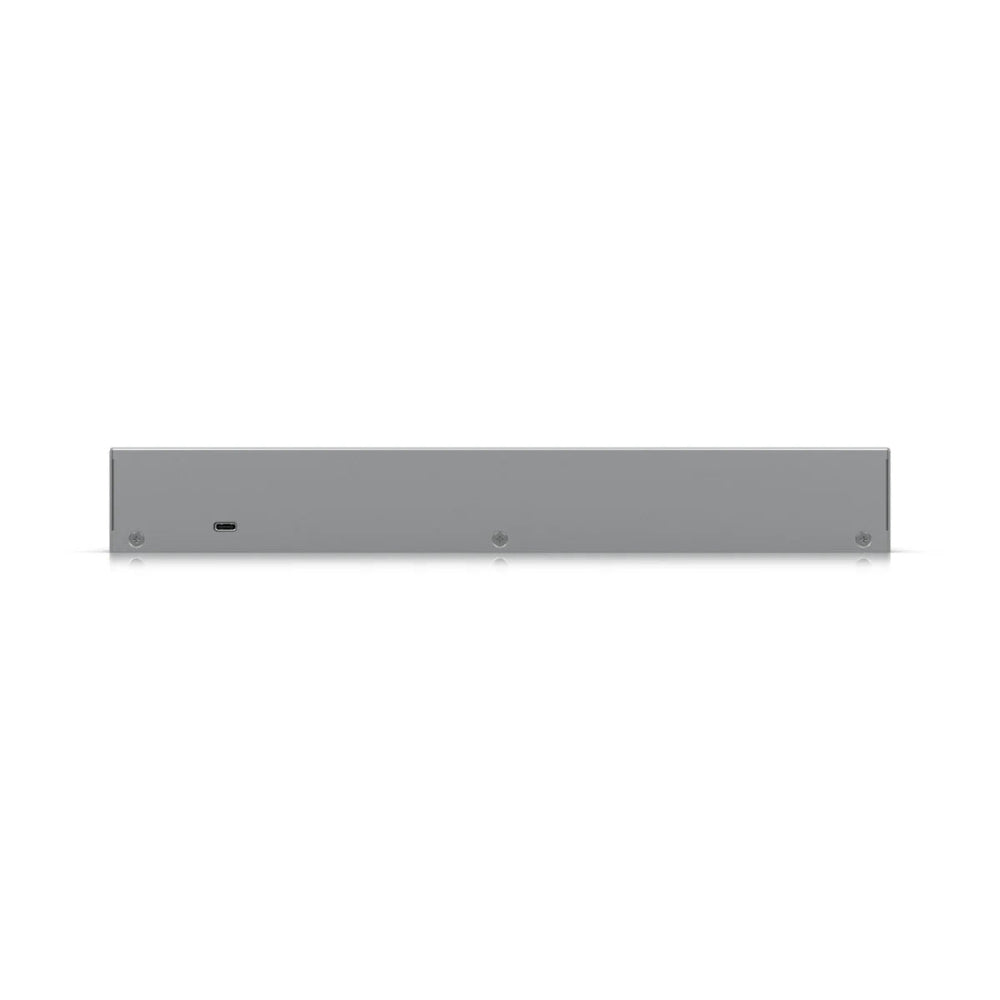

USB Type-C, 5V DC, 5A
Power Supply
AC/DC, external, 25W
Supported Voltage Range
4.8—5.2V DC/USB
Management
Ethernet
AR
Heat Dissipation (Excluding PoE Output)
85.3 BTU/hr
Weight
1.95 kg (4.3 lb)
Enclosure Material
SGCC steel
Mount Material
SGCC steel
Supported Rack Depth
400~1200 mm
(15.7-47.2")
LCM Display
1.3" touchscreen
Ambient Operating Temperature
-5 to 40° C (23 to 104° F)
Ambient Operating Humidity
10 to 90% noncondensing
Etherlighting™
Ethernet
✓
SFP+
✓
Certifications
CE, FCC, IC
NDAA Compliant
✓
Software
Application Requirements
UniFi Network
Version 8.1.127 and later
Warranty Information
All products come with a minimum 12 Months Warranty - Please check the Specification Section to see if longer!
