Ubiquiti UniFi USW-PRO-MAX-24-POE 24 Port POE 400W Switch
Ubiquiti UniFi USW-PRO-MAX-24-POE 24 Port POE 400W Switch
Ubiquiti USW-Pro-Max-24-PoE-400W UniFi 24-Port L3 Managed 2.5/1GbE PoE++ Access Switch With 2 x 10G SFP+ Ports
Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network*
(8) 2.5 GbE PoE++ ports
(16) GbE ports including (8) PoE+ and (8) PoE++
(2) 10G SFP+ ports
DC power backup ready
400W total PoE availability
*Pair with UniFi Etherlighting Patch Cables for optimal brightness.
- Etherlighting ports that illuminate to indicate port location, speed/link, and native VLAN/network.
- Eight (8) 2.5 GbE PoE++ ports.
- Sixteen (16) GbE ports including eight (8) PoE+ and eight (8) PoE++.
- Two (2) 10G SFP+ ports.
- DC power backup ready.
- 400W total PoE availability.
- Pair with UniFi Etherlighting Patch Cables (sold separately) for optimal brightness.
Share
Explore Further
Highlights
Etherlighting ports that illuminate to indicate port location, speed/link, and native VLAN/network.
Eight (8) 2.5 GbE PoE++ ports.
Sixteen (16) GbE ports including eight (8) PoE+ and eight (8) PoE++.
Two (2) 10G SFP+ ports.
DC power backup ready.
400W total PoE availability.
Pair with UniFi Etherlighting Patch Cables (sold separately) for optimal brightness.

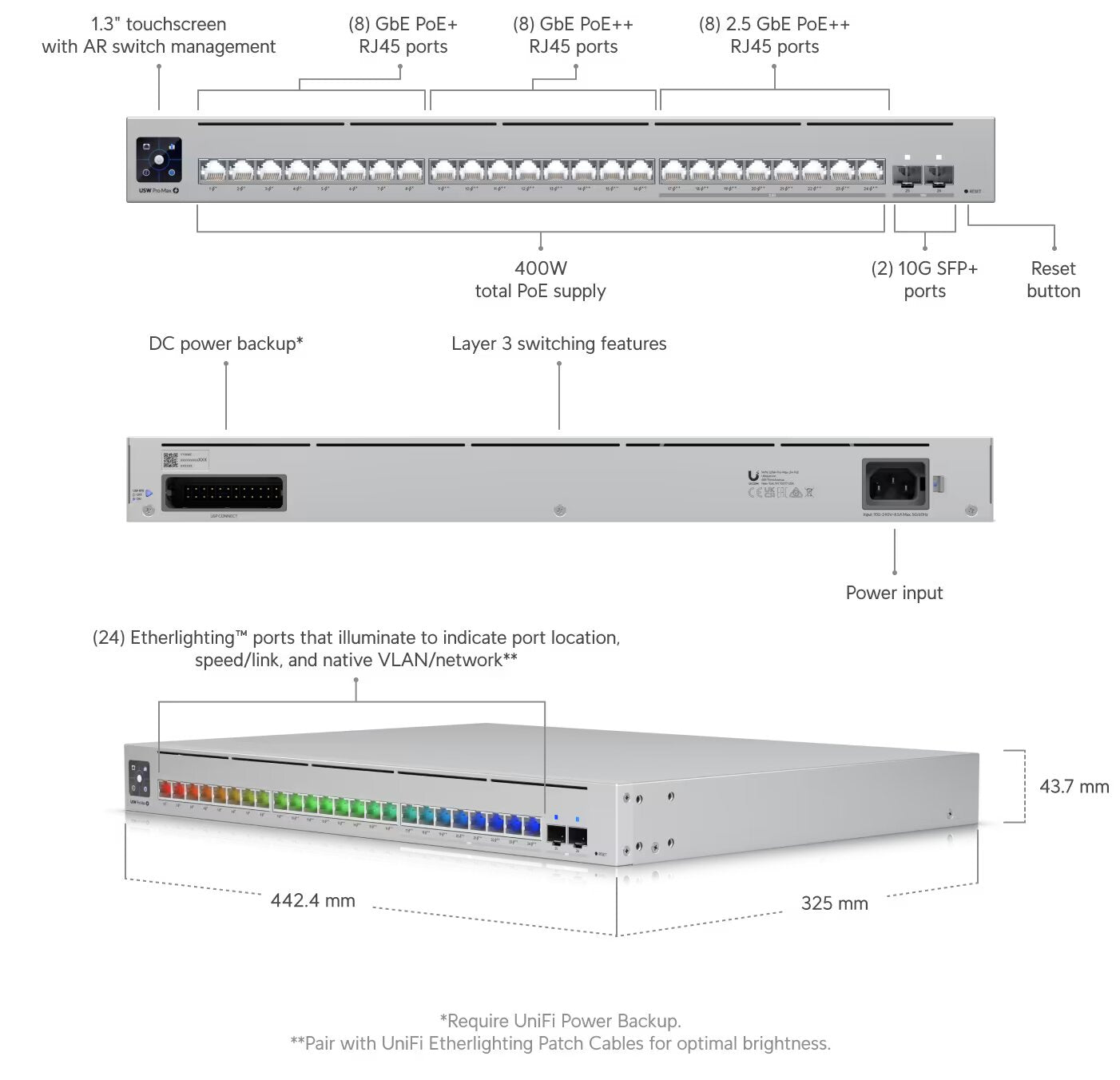

Dimensions and Weight
Width 442 mm, Depth 325 mm, Height 43.7 mm,Weight 6 kg
Specification
Mechanical
Dimensions 442 x 325 x 44 mm (17.4 x 12.8 x 1.7")
Weight Without mounting brackets: 5.1 kg (11.3 lb)
With mounting brackets: 5.2 kg (11.5 lb)
Enclosure material SGCC steel
Hardware
Management interface Ethernet In-Band
Networking interface (16) GbE RJ45 ports
(8) 1/2.5 GbE RJ45 ports
(2) 10G SFP+ ports
PoE interface (8) PoE/PoE+ (Pins 1, 2+; 3, 6-)
(16) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)
Total non-blocking throughput 56 Gbps
Switching capacity 112 Gbps
Power method (1) Universal input, 100—240V AC, 50/60 Hz
(1) USP-RPS DC input
Power supply AC/DC, internal, 450W
Supported voltage range 100—240V AC
Max. power consumption 50W (Excluding PoE output)
Total available PoE 400W
Max. PoE wattage per port by PSE PoE: 15.4W
PoE+: 30W
PoE++: 60W
Voltage range PoE mode PoE: 44—57V
PoE+: 50—57V
LCM display (1) 1.3" touchscreen
Button Factory reset
Ambient operating temperature -5 to 40° C (23 to 104° F)
Ambient operating humidity 10 to 90% noncondensing
Certifications CE, FCC, IC
Switching Features
Layer 2 features IGMP snooping
STP / RSTP with priorities and port-level disable
Port isolation
Storm control
Voice VLAN
Port mirroring
LACP port aggregation
Multicast / broadcast rate limiting
MAC address blocking
Flow control
802.1X control
Jumbo frames
Proprietary loop protection
DHCP snooping / guarding
Egress rate limit
LLDP-MED
Port restricted by MAC
Device isolation with ACLs
Layer 3 features DHCP for locally-managed networks
DHCP relay
Inter-VLAN routing between networks on same switch
Static routing between local networks
Network isolation with ACLs
Etherlighting™
Ethernet Locating
Speed/link
Native VLAN/network
SFP+ Locating
Speed/link
Native VLAN/network
LEDs
System Status
RPS Status
Application Requirements
UniFi Network Version 8.0.24 and later
Warranty Information
All products come with a minimum 12 Months Warranty - Please check the Specification Section to see if longer!
