Ubiquiti UniFi USW-PRO-MAX-48-POE 48 Port POE 720W Switch
Ubiquiti UniFi USW-PRO-MAX-48-POE 48 Port POE 720W Switch
Couldn't load pickup availability
Ubiquiti USW-Pro-Max-48-PoE 720W UniFi 48-Port Layer 3 Managed 2.5/1GbE PoE++ Access Switch With 4 x 10G SFP+ Ports
A 48-port, Layer 3 Etherlighting™ switch with 2.5 GbE and PoE++ output.
- Etherlighting ports that illuminate to indicate port location, speed/link, and native VLAN/network.
- (16) 2.5 GbE ports including (8) PoE+ and (8) PoE++
- (32) GbE ports including (24) PoE+ and (8) PoE++
- (4) 10G SFP+ ports
- DC power backup ready.
- 720W total PoE availability
- Pair with UniFi Etherlighting Patch Cables (sold separately) for optimal brightness.

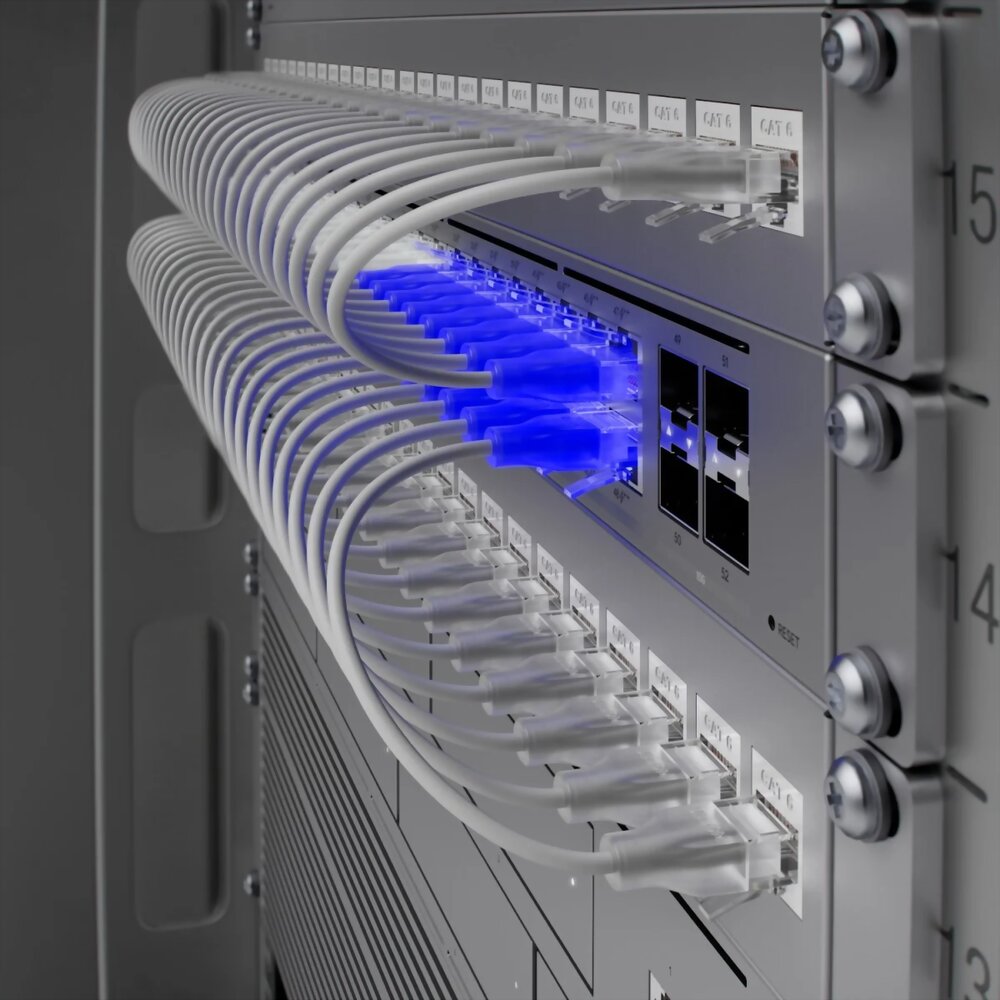

Etherlighting
The USW-Pro-Max-48-PoE 720W transforms network management with its advanced 48-port, Layer 3 Etherlighting design. Featuring illuminated Etherlighting ports, it provides critical information such as port location, speed/link, and native VLAN/network, enhancing visibility and simplifying troubleshooting.
Enhanced Connectivity
This switch boasts exceptional connectivity with sixteen 2.5 GbE ports, including eight PoE+ and eight high-power PoE++ ports, ensuring versatile and efficient power delivery. Additionally, it offers thirty-two GbE ports—twenty-four PoE+ and eight PoE++ ports—along with four 10G SFP+ ports, delivering a comprehensive and flexible networking solution.
Intelligent Management
Experience smart and efficient network management with the USW-Pro-Max-48-PoE-720W. Its 1.3-inch touchscreen LCM display and convenient factory reset button make network management intuitive and user-friendly.
Share
Explore Further
Highlights
Etherlighting ports that illuminate to indicate port location, speed/link, and native VLAN/network.
(16) 2.5 GbE ports including (8) PoE+ and (8) PoE++
(32) GbE ports including (24) PoE+ and (8) PoE++
(4) 10G SFP+ ports
DC power backup ready.
720W total PoE availability
Pair with UniFi Etherlighting Patch Cables (sold separately) for optimal brightness.

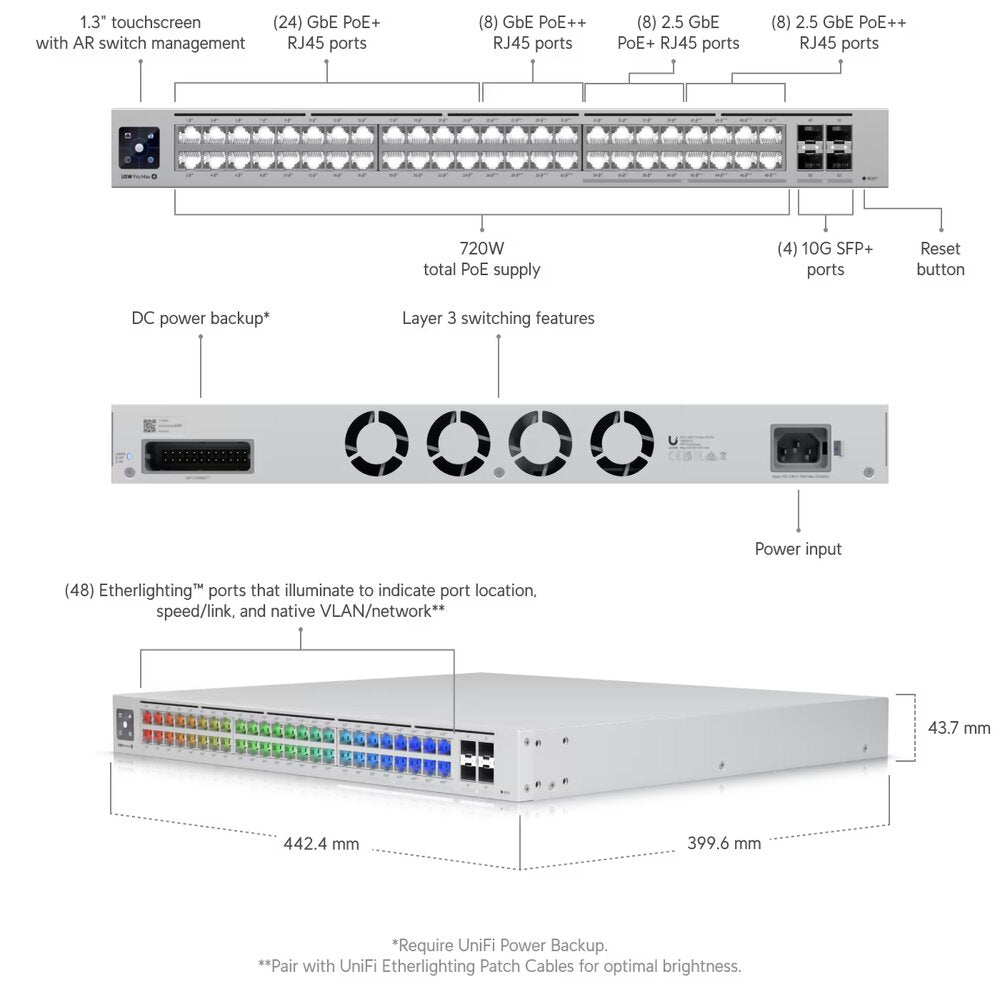

Dimensions and Weight
Width 442.4 mm, Depth 399.6 mm, Height 43.7 mm,Weight 6.3 kg
Specification
Mechanical
Dimensions 442.4 x 400 x 44 mm (17.4 x 15.7 x 1.7")
Weight Without mounting brackets: 6.2 kg (13.7 lb)
With mounting brackets: 6.3 kg (13.9 lb)
Enclosure material SGCC steel
Hardware
Management interface Ethernet In-Band
Networking interface (32) GbE RJ45 ports
(16) 1/2.5 GbE RJ45 ports
(4) 10G SFP+ ports
PoE interface (32) PoE/PoE+ (Pins 1, 2+; 3, 6-)
(16) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)
Total non-blocking throughput 112 Gbps
Switching capacity 224 Gbps
Forwarding rate 166.656 Mpps
Power method (1) Universal input, 100—240V AC, 50/60 Hz
(1) USP-RPS DC input
Power supply AC/DC, internal, 820W
Supported voltage range 100—240V AC
Max. power consumption 100W (Excluding PoE output)
Total available PoE 720W
Max. PoE wattage per port by PSE PoE: 15.4W
PoE+: 30W
PoE++: 60W
Voltage range PoE mode PoE: 44—57V
PoE+: 50—57V
LCM display (1) 1.3" touchscreen
Button Factory reset
Ambient operating temperature -5 to 40° C (23 to 104° F)
Ambient operating humidity 10 to 90% noncondensing
Certifications CE, FCC, IC
Switching Features
Layer 2 features IGMP snooping
STP / RSTP with priorities and port-level disable
Port isolation
Storm control
Voice VLAN
Port mirroring
LACP port aggregation
Multicast / broadcast rate limiting
MAC address blocking
Flow control
802.1X control
Jumbo frames
Proprietary loop protection
DHCP snooping / guarding
Egress rate limit
LLDP-MED
Port restricted by MAC
Device isolation with ACLs
Layer 3 features DHCP for locally-managed networks
DHCP relay
Inter-VLAN routing between networks on same switch
Static routing between local networks
Network isolation with ACLs
Etherlighting™
Ethernet Locating
Speed/link
Native VLAN/network
SFP+ Locating
Speed/link
Native VLAN/network
LEDs
System Status
RPS Status
Application Requirements
UniFi Network Version 8.0.24 and later
Warranty Information
All products come with a minimum 12 Months Warranty - Please check the Specification Section to see if longer!
