Ubiquiti

Ubiquiti UniFi USW-Pro-XG-10-PoE+++ L3 Switch

Ubiquiti UniFi USW-Pro-XG-10-PoE+++ L3 Switch

£659.99
£954.00 £659.99
Sale Sold out
Tax included. Shipping calculated at checkout.

Ubiquiti UniFi USW-Pro-XG-10 Layer 3 Switch Etherlighting™ PoE+++ 1U Switch with (10) 10 GbE and (2) 10G SFP+ ports 400W Budget

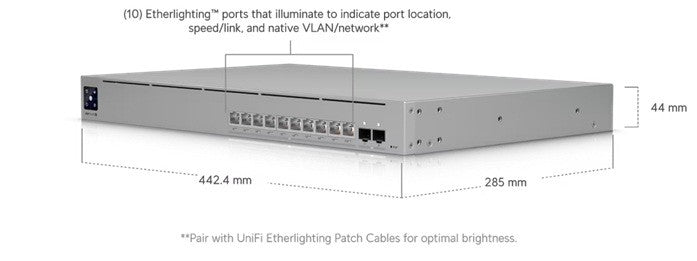

  • Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network*
  • (10) 10 GbE PoE+++ ports
  • (2) 10G SFP+ ports
  • DC power backup ready**
  • 400W total PoE availability

*Pair with UniFi Enterprise Patch Cable for optimal brightness.
**Requires UniFi RPS.



The Ubiquiti USW-Pro-XG-10-PoE Switch is a high-performance network switch designed for demanding environments. Featuring 10 x 10 GbE PoE+++ ports, this switch provides exceptional power and data transmission capabilities, making it ideal for businesses that require reliable connectivity. The inclusion of Etherlighting™ ports enhances user experience by illuminating to indicate port location, speed/link, and native VLAN/network, ensuring easy management and monitoring of your network infrastructure.


With a total of 400W PoE availability, the Ubiquiti UniFi USW-Pro-XG-10-PoE Switch supports a wide range of devices, from access points to IP cameras, facilitating seamless integration into your existing network. Additionally, the switch is equipped with 2 x 10G SFP+ ports for high-speed uplinks, allowing for efficient data transfer between switches and other network devices. The DC power backup ready feature ensures that your network remains operational even during power outages, providing peace of mind for critical applications.


As part of the UniFi product line, the USW-Pro-XG-10-PoE Switch exemplifies Ubiquiti's commitment to innovation and quality. This model is engineered to meet the needs of modern networks, offering both performance and reliability that set it apart from competitors. Enhance your network infrastructure with this robust and feature-rich switch.

View full details

Explore Further

Highlights

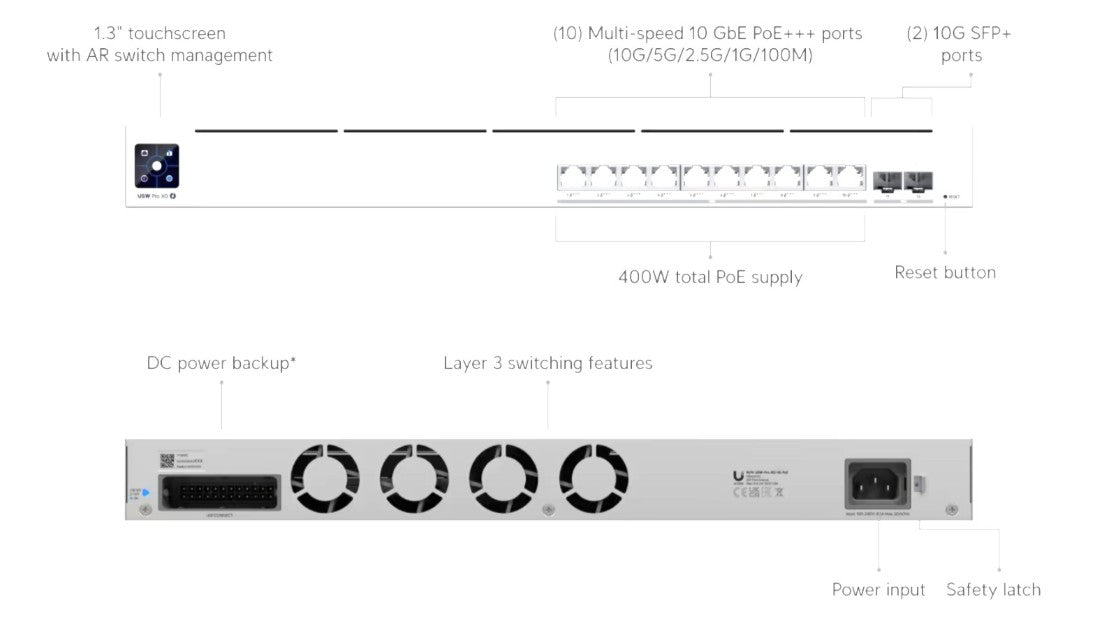

1U, professional-grade 10-port, Layer 3 Etherlighting™ PoE+++ switch with (10) 10 GbE and (2) 10G SFP+ ports.

Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network*

(10) 10 GbE PoE+++ ports

(2) 10G SFP+ ports

DC power backup ready**

400W total PoE availability

*Pair with UniFi Enterprise Patch Cable for optimal brightness.
**Requires UniFi RPS.

Dimensions and Weight

Width 442.4 mm, Depth 285 mm, Height 44 mm,Weight 8 kg

Specification

Overview
Dimensions
442.4 x 285 x 44 mm
(17.4 x 11.2 x 1.7")
Port Layout
10 GbE RJ45
10 (All PoE+++)
(10G/5G/2.5G/1G/100M)
10G SFP+
2
(10G/1G)
Max. PoE Output
Up to PoE+++
Total PoE Availability
400W
Redundancy
DC Power Backup
Layer 3
✓
Form Factor
Rack mount (1U)
Etherlighting™
✓

Performance
Switching Capacity
240 Gbps
Total Non-Blocking Throughput
120 Gbps
Forwarding Rate
179 Mpps
Supported VLANs
1,000
MAC Address Table Size
32,000
L3 Table Size
ARP Entries
12,000
IPv4 Routes
12,000
Packet Buffer Size
2 MB
Access Lists
IPv4
128
MAC
128

Layer 3 Features
DHCP Server (Local Networks)
✓
DHCP Relay
✓
Inter-VLAN Routing (Local Networks)
✓
Static Routing (Local Networks)
✓

Layer 2 Features
LACP Port Aggregation
✓
STP & RSTP
✓
QoS (DSCP)
✓
Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)
✓
Advanced IGMP Configuration (Querier, Fast Leave, Router Port)
✓
IGMP Snooping
✓
802.1X Control
✓
MAC-Based ACLs & Device Isolation
✓
DHCP Snooping & Guarding
✓
Egress Rate Limit
✓
Flow Control
✓
Storm Control
✓
Multicast & Broadcast Rate Limiting
✓
MAC Address Blocking
✓
IP-Based ACLs & Network Isolation
✓
MAC-Based Port Restriction
✓
Port Isolation
✓
Port Mirroring
✓
Jumbo Frames
✓
LLDP-MED
✓
Voice VLAN
✓
Loop Protection
✓
Virtual Network Override
✓

Hardware
PoE Ports
PoE+++
10
Max. PoE Wattage per Port by PSE
PoE
15.4W
PoE+
30W
PoE++
60W
PoE+++
90W
Max. Power Consumption
65W (Excluding PoE output)
520W (Including PoE output)
Power Method
(1) Universal input, 100—240V AC, 50/60 Hz
(1) USP RPS DC input
Power Input Method
AC input
Power Supply
AC/DC, internal, 550W
Supported Voltage Range
100—240V AC
Management
Ethernet
AR
Weight
Without mounting brackets: 4.6 kg (10.14 lb)
With mounting brackets: 4.7 kg (10.36 lb)
Enclosure Material
SGCC steel
Mount Material
SGCC steel
Supported Rack Depth
400~1200 mm
(15.7-47.2"")
LCM Display
1.3" touchscreen
ESD Protection
Air: ± 30kV, contact: ± 30kV
Ambient Operating Temperature
-5 to 40° C (23 to 104° F)
Ambient Operating Humidity
10 to 90% noncondensing
Etherlighting™
Ethernet
✓
SFP+
✓
LEDs
RPS
✓
System
✓
NDAA Compliant
✓
Certifications
CE, FCC, IC, Anatel: 05660-25-08356

Software
Application Requirements
UniFi Network
Version 9.1.120 and later

Warranty Information

All products come with a minimum 12 Months Warranty - Please check the Specification Section to see if longer!
