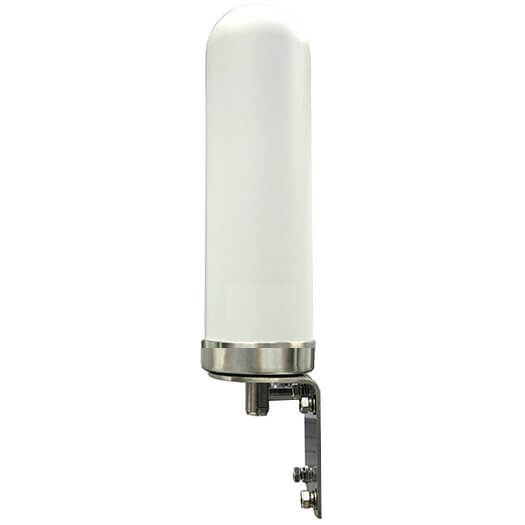

• DrayTek ANT-4GE1 Rugged Outdoor 4G Antenna Aerial

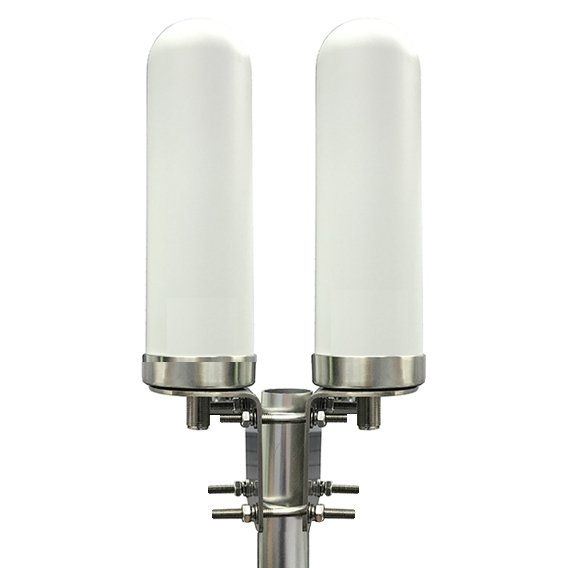

  • DrayTek ANT-4GE1 Rugged Outdoor 4G Antenna Aerial Dual Pole Mounted

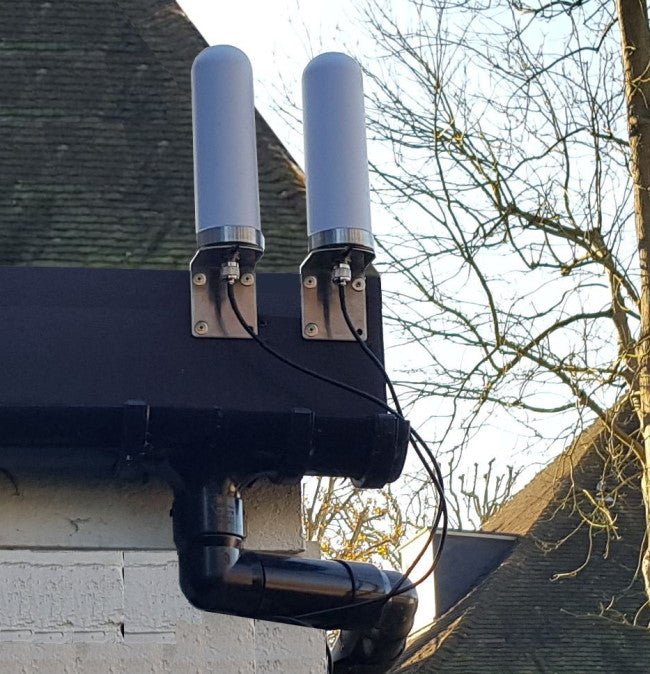

  • DrayTek ANT-4GE1 Rugged Outdoor 4G Antenna Aerial Dual Pole Mounted Outside a House
1 3

DrayTek ANT-4GE1 Rugged Outdoor 4G Antenna

DrayTek ANT-4GE1 Rugged Outdoor 4G Antenna

£59.99
£59.99
Sale Sold out
Tax included. Shipping calculated at checkout.

DrayTek ANT-4GE1 Outdoor 6-dBi Omni-Directional 3G/4G LTE Antenna(Single Unit Only - requires SMA Cable)

The DrayTek ANT-4GE1 Outdoor 3G/4G LTE 6dBi Omni-Directional Antenna can improve 4G, 3G & LTE signal reception for any DrayTek Vigor LTE router (sold separately). DrayTek 4G/LTE routers (sold separately) can provide highly resilient connectivity by utilising mobile broadband, either as the main internet connection or as a backup connection for the building. Expand the coverage and improve speeds by locating the antenna in a location which receives a strong signal.

Key Features

  • Omni-directional outdoor aerial
  • Signal gain: 4-6 dBi
  • Can also be used indoors
  • Improves signal stability and reception
  • Suitable for all DrayTek LTE routers
  • Wall or pole mountable (includes fittings)
  • 4G, 3G, 2G & LTE Compatible
  • Requires N-Type Male to SMA-Male cable

3G/4G LTE compatible

The ANT-4GE1 antenna supports all currently used 4G, 3G and 2G frequency bands from 700MHz to 2.7GHz.

Easy installation

The antenna is omni-directional, designed for vertical orientation to receive signal from any nearby mobile cell tower, without requiring careful or sensitive aiming during installation. The ANT-4GE1 antenna is weatherproof and ideal for permanent outdoor installation either on a pole or wall. Fixings are provided suitable for either (pole not included).


    View full details

    Explore Further

    Highlights

    Technical Specification (UK Hardware Spec.)
    ANT-4GE1 - LTE Antenna for DrayTek LTE Routers
    Frequency Range (Mhz)
    4G/LTE: 800, 1800, 2600
    3G: 900, 2100
    5G: 700, 3400
    Antenna Type Omni-Directional
    Installation Environment Outdoors or Indoors
    Horizontal Beam Width 360
    Vertical Beam Width 25
    Gain (dBi) 4 to 6
    Polarisation Vertical
    VSWR ~1.5
    Impedance (ohm) 50
    Lightning Protection Direct Ground
    Mechanical Specifications
    Operating Temperature ( C) -40 to 80
    Height 25cm (without bracket)
    32cm (with bracket)
    Diameter 7cm
    Dome Material ABS
    Radiating Element Material Zinc alloy
    Antenna Connector N-Female
    Weight (kg) 0.5 (including bracket)

    Dimensions and Weight

    Width 70 mm, Depth 70 mm, Height 250 mm,Weight 0.8 kg

    Specification

    Technical Specification (UK Hardware Spec.)
    ANT-4GE1 - LTE Antenna for DrayTek LTE Routers
    Frequency Range (Mhz)
    4G/LTE: 800, 1800, 2600
    3G: 900, 2100
    5G: 700, 3400
    Antenna Type Omni-Directional
    Installation Environment Outdoors or Indoors
    Horizontal Beam Width 360
    Vertical Beam Width 25
    Gain (dBi) 4 to 6
    Polarisation Vertical
    VSWR ~1.5
    Impedance (ohm) 50
    Lightning Protection Direct Ground
    Mechanical Specifications
    Operating Temperature ( C) -40 to 80
    Height 25cm (without bracket)
    32cm (with bracket)
    Diameter 7cm
    Dome Material ABS
    Radiating Element Material Zinc alloy
    Antenna Connector N-Female
    Weight (kg) 0.5 (including bracket)
